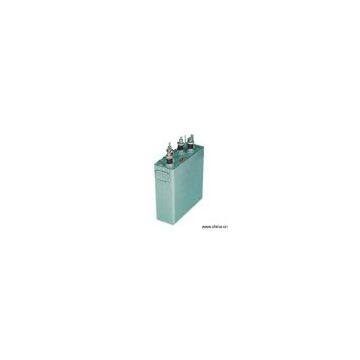

Sell Electrothermal Capacitor

Model No.:HY116
Product Origin:China
Brand Name:Lastone
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Electrothermal CapacitorModel Number: HY116Place of Origin: ChinaApplications: Electrothermal capacitor is mainly used in inductive heating system to increase power factor or improve circuit characteristic. The performance of PWM and RFM models of water-cooled style and full film conforms to the JB7110-93 standard (capacitors for electric heating installations) and the IEC60110 (1998) regulation (capacitors for inductive heat generating plants operating at frequencies between 40Hz and 2,400Hz). Operation instruction: 1) Indoor use 2) Altitude: <1,000m 3) No violent mechanical vibration, no harmful gas and vapor, no electric and explosive dust in location 4) Temperature of cooled flowing: <30° 5) Flowing water volume of capacitor: a) <1,000kVAr; not less than 4L/min b) 1,000kVAr or more, not less than 6L/min 6) Long-term over-voltage (<4 hours within 24): <1.1Un 7) Long-term over-current (including harmonic current): <1.35In
