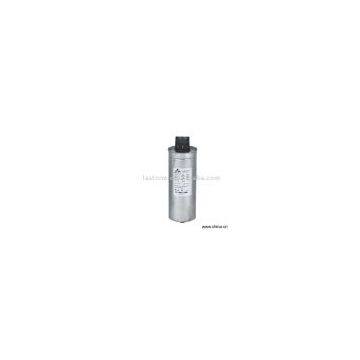

Sell Cylindrical Power Capacitor

Model No.:HY111-A
Product Origin:China
Brand Name:Lastone
Price Terms:
Payment Terms:T/T, L/C
Certification:CE, IEC60831
Description:Product Name: Cylindrical Power CapacitorModel Number: HY111-APlace of Origin: ChinaWe supply various kinds of capacitors. HY111-A power capacitor allows power factor correction installation to be constructed for any requirement and meet the standard of EN60831-1 and -2, as well as IEC831-1 and -2. This product features cylindrical aluminum case, dielectric consisting of metallized polypropylene foil, dry type, and filled with resin. The dielectric is self-healing, in case of a breakdown caused, for example, by voltage overload, the self-healing effect takes place. If the self-healing process does not operate, the cover plate which is designed as an overload valve, is raised and ruptures the internal connecting wires to the coils, so that the capacitor is disconnected from the mains. Features: 1) Cylindrical aluminum case, with mounting stud M12 x12 2) With discharge resistor 3) Rating: 1 - 30kVA at 400V / 50Hz 4) Working temperature: -40 ~ +55°C
