Product Details
| Brand Name | SunPc | Place of Origin | China | |
| Model Number | IPPC-120D-2RH |
Product Description
Warranty |
18 Months |
|
|
IPPC-120D-2RH |
|
|
SunPc |
Shenzhen Sunpc Technology Co., Ltd is a manufactuer and have our own factory, we provide many kinds of industrial panel pcs , such as panel mount industrial panel pc, rackmount industrial panel pc, high performance industrial panel pcs, from 8.4" to 19", and also provide industrial lcd monitor, fanless embedded computer,mini-itx motherboard ect

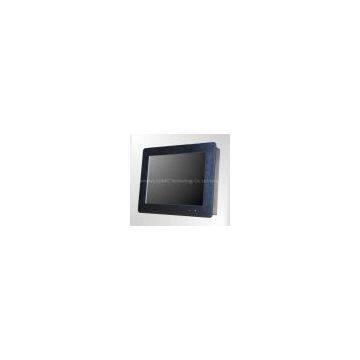

Cheap 12.1 high brightness Atom D525 Dual-Core Panel PC IPPC-120D-2RH
Feature:
12.1" LED Panel PC, 1024x768 pixels, 500 CD/m2 brightness
Intel Atom D525 dual-core processor 1.8GHz/ with 667 MHz FSB
Front 6mm Aluminium magnesium alloy with IP65 compliant
5 wire touchscreen(touch option)
4*COM (RS422/485), 1*LPT, 2*PS/2, 1*VGA, 4*USB, 2*Glan, 1*Audio, 1*MIC
1*Mini PCI slot
Wireless LAN with antenna (option)
Panel(Flush)mount with Clips
Standard VESA 75mm support stand, Wallount and swing arm
Specifications;
| TFT Characteristics | |||
| Display Type |
12.1XGA TFT LED |
Pixel Number |
1024 x 768 |
| Pixel Pitch(RGB) | 0.297*0.297 | Contrast Ratio |
700: 1 |
| Light Intensity |
500 nits |
Viewable Angles | 150°(H) , 135°(V) |
| Max Colors | 16.2MB | Response Time | 8 ms |
| MTBF | 50,000hrs. | ||
| System Characteristics | |||
| Processor | Intel Atom D525 Dual-Core 1.8GHz processor with 667 MHz FSB | Chipset | Intel NM10 |
| Memory | 2 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. | Graphic |
Intel GMA3150 chipset |
| Storage | Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot | Audio | Realtek ALC662,5.1 Channel surround Audio |
| USB Port | 4 x USB 2.0 | Ethernet | 100/1000M Ethernet |
| VGA Port | 1 x VGA Connector | Expansive Slot | 1 x Mini PCIe |
| Serial Port |
4 x RS-232( 1X RS422/485) |
Optical device | Not build in |
| VGA port | 1 x VGA Connector | Watchdog Timer | 255 Levels , 1-255 sec. |
| Available Options | |||
| Touch Screen | 5 WIRE Resistive | Wireless LAN/Wifi |
Meet IEEE802.11b/g standard. |
| DC Power Input | Standard is DC12V input (DC 8 -28V, DC9-36V is optional ) | ||
| I/O Connector | |||
| PS/2 | 1 x PS2 for KB/ Mouse | Lan | 2 x 100/1000 Lan port(RJ-45) ) |
| VGA | 1 x VGA | USB | 4x USB 2.0 |
| RS-232 |
4 x RS-232 (1X RS422/485) |
Power Switch | 1 x Power Switch |
| DC Input | 1 x Lockable DC Input connector | Audio | 1 x Lin-in /Lin-out / Mic-in |
| Mechanical and Environmental | |||
| Construction | Aluminum front bazel and silver Color Coating | Storage humidity |
10% to 90%non-condensing |
| Operating temperature | 32°F~125°F ( 0 °C to 50 °C) | Anti-Vibration | 17 to 500Hz 1G PTP |
| Storage temperature | -4°F~140°F ( -20 °C to 60 °C) | Dimensions (WxHxD |
322 x 247.5 x 71 mm |
| Anti-Shock | 1g/ peak(11ms) | Weight |
Net: 4.5 kg , Volume Gross:6kg |
|
Power Supply |
|||
| Output | DC12V 1A / 120W external AC Power Adapter with Lockable connector | Input | 100~240VAC,50/60Hz |
| Certificate & Approvals | CE/ RoHS |
Ordering Information
|
12.1" Slim Line Panel Mount Industrial Panel PC with 12.1”touchscreen, Intel Atom D525 Dual-core 1.8GHz Processor, 320G HDD,2G DDR3 RAM, DC12V power supply |
