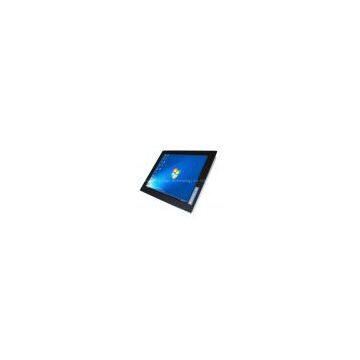

Cheap 12 inch industrial LCD monitor IPM-12T

12.1" SVGA TFT LCD

Resolution

800 x 600

Pixel Pitch(RGB)

0.3075x 0.3075 mm

Contrast Ratio

600 : 1

400 cd/m2

Viewable Angles

140°(H) , 110°(V)

16.2M

Response Time

35 ms

50,000hrs.

Available Options

Touch Screen

Resistive type with USB and RS232 controller

DC power input

Wide Range 8-30V DC input

AV input

Composite Video/Audio, S-video input

Power Specifications

Input

100~240VAC,50/60Hz

Output

DC12V@5A/60W,external AC adapter

Mechanical and Environmental

Construction

Heavy duty steel and aluminum front panel

Dimension (WxHxD)

320x258.5x40mm

Weight

Net: 4.5KG, Gross: 6.0KG

Operating temperature

32 °F~113 °F (0 °C to 50 °C)

Storage temperature

-4 °F~140 °F (-20 °C to 60 °C)

Storage humidity

10% to 90%non-condensing

Vibration

17 to 500HZ 1G PTP

Anti-Shock

1G /peak( 11m sec)

Input Signals

RGB Signal

D-SUB 15p Connector( Female)

DC input

DC jack (2.1mm)

Video Input (option)

RCA Connector

S-Video Signal (option)

S-Video (Svhs) Plug

DVI-D Signal

DVI-D input 24pin connector (Female)

Touch screen RS232 (option)

D-SUB 9p Connector (Female)

Touch screen USB (option

USB-A Type connector (Female)

Certification and Approvals

VGA+DVI input

IPM-12

12.1" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input

IPM-12T/C

12.1" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input ,with Touch screen and RS232 controller

IPM-12T/U

12.1" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input ,with Touch screen and USB controller

AV input

IPM-12A

12.1" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input

IPM-12AT/C

12.1" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input ,with Touch screen and RS232 controller

IPM 12AT/U

12.1 " Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input ,with Touch screen and USB controller r

DC-DC power

DC8~30V input power module
