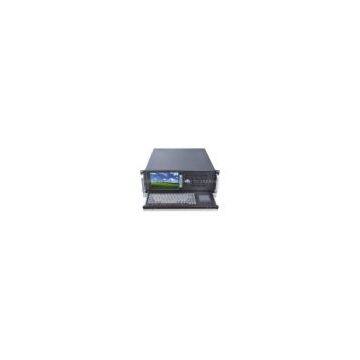

4U Rackmount 8 inch TFT LCD Rackmount Workstation

Product Description
We are a manufactuer and have our own factory, we provide many kinds of industrial panel pcs , such as panel mount industrial panel pc, rackmount industrial panel pc, high performance industrial panel pcs, from 8.4" to 19", and also provide industrial lcd monitor, fanless embedded computer,mini-itx motherboard ect


Product Feature
4U Rackmount 8" TFT LCD Rackmount Workstation
8"TFT LCD with fully functional OSD
. Compatible with ISA, PCISA, series half-size SBC
. 2 x 3.5" HDD capacity, 2 x front-accessible USB port
. Models with touch screen available
. 88 keyboard and touch pad module
. 4U height 19" half-sized chassis with 8" VGA display

Product Specification/Models
Specification:

System

Construction
Front Aluminum Bazel and steel enclosure
Disk Driver Bay 2 x 3.5" HDD capacity
Cooling Fan 2 x 8025 low-noisy swap cooling fan, with air filter and Moistureproof design
Keyboard Built-in 88-keys keyboard and touch pad.
OSD OSD function in front panel
I/O Connector Front panel: 2xUSB2.0Rear panel: 1xVGA, 2xPS/2(Optional)
LED indicators & Switch Power LED indicator(Green), HDD LED indicator(Red), ATX Power Switch
Color Black
LCD Panel
Display type 8" XGA TFT LCD
Resolution 800 X 600
Luminance 250 cd/m2
Contrast Ratio 500:1
Max Colors 16.2MB
Backlight LED
Pixel Size 0.297 x 0.297
View angle 150°(H) , 135°(V)
Response time 8 ms
LCD MBTF 50,000hrs
Touchscreen (optional)

Type Resistive Touchscreen
Resolution 4096x4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force 250g
Life Expectancy 10 Millions
Environmental Specifications

Operate tempreture 32 °F~125 °F (0 °C to 50°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage Humidity 5% to 95%@ 40°C , non-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 1G /peak(11 msec. duration)
Safty FCC/VDE(Level A)
Packing info
Dimensions(WxHxD) 482.6 x 179 x 451.5mm
Weight Net:21 KG, Gross: 25KG
Exporting packing Screws x1 bag, VGA cable x1, User manual x1,Warranty card x1, Certificatex1, PS/2 cable x2, Shock pad x2, Packing list x1


Ordering information

IWPC-408-AX
IWPC-408-ATX 8"TFT LCD, AT rear panel, with Industrial power supply
8"TFT LCD, ATX rear panel, ATX MB foam factor or Industrial Moterboard(Optional)
