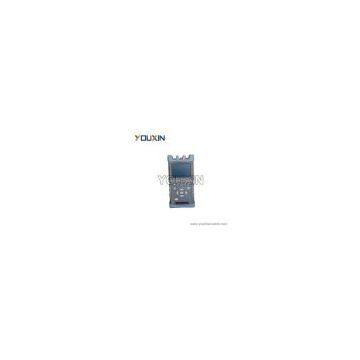

China mini handheld fiber optic OTDR

China mini handheld fiber optic OTDR with different, different wavelength, dynamic range 24/26/28dB, event dead zone <1.6m, attenuation dead zone. Please choose the following module

Features

2. Visible fault locating (VFL)

4.1.6m extra-short event dead zone

6. Fast auto measurement, one-button operating

8. Supporting Bellcore GR196 file format in writing or reading

10. WinCE operation system, double operating interface of Chinese and English

12. The most advanced technology of double-color & material integrative mould in trade

14 Unique function of updating system on-line, returning to factory is unnecessary

Parameter

Applicable fiber Single-mode

Distance measurement accuracy ±(1m + sample space + 0.003% * measurement distance)

Sampling resolution 0.25, 0.5, 1, 2, 4, 8, 16m

Pulse width 10, 30, 80, 160, 320, 640, 1280, 5120, 10240ns

Sampling points 65534

Memory capacity ≥800 Traces

∼2.00000

Interface USB, Min-USB

Language Simple Chinese/English

Power supply DC:15V∼240V,50/60Hz,1.5A),Built-in Lithium batteryDimensions

FTTH, LAN, PON & Optical CATV

Optical fiber communication system

Optical fiber sensor

1kg
