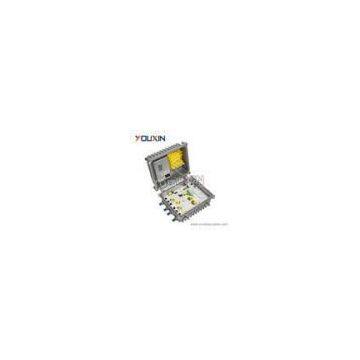

Outdoor Optical receiver （ four output, Chinese GaAs module)

Optical receiver with E-O pin diode and Chinese GaAs amplifier module, 4 output ports, 45/87-862MHz, reverse upgrade, imperial F female port, FC/APC or SC/APC connector, rated output level 108dBuV (input optical power -2dBm), waterproof housing, AC135~250V (power cord with EURO (2 pole with GND) or USA standard plug (3 pole)) or 35~90V.(SNMP management is optional)

Features : Download DOC:OR5500

◇ High quality E-O PIN-diodereceiving module

◇ Eight-stageinput optical power digital LED display

◇ Wide range ofinput optical power

◇Chinese GaAs amplifier module Power Doublers

output module

◇ Plug-insplitter(tap) in output and plug-in return path

◇ Local and remotepowering

◇ Weatherproof andRF-screened die-cast housing

Description

OR5500Series Field Optical Receiver are the most common transmission equipment ofCATV HFC, which mainly used in long distance optical fiber transmission for TV video signal, digital TV signal,telephone voice signal and data signal(compressed data).

Since our first CATVoptical receiver come to market in 1995, we have done deep research on allkinds of technical performance parameters for more than 10years, accumulating alot of experience in product development and engineer in practice. The internalcircuit and external structure are much better and the performance is upgraded
