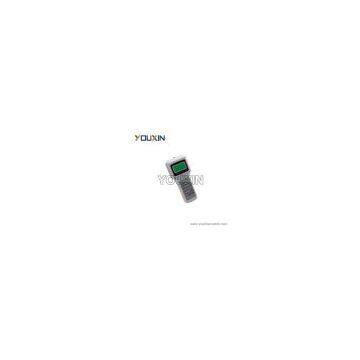

Signal Level Meter (5-870MHz, Level Range 30~120dBuV)

FOB Price

Negotiable / Case

1 Case(Min.Order)

Supply Ability 0 Case / Cases per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YOUXIN		Place of Origin	China
Model Number	SLM-1280

Product Description

Signal level meter, 5-870MHz, level range 30~120dBuV, 128x64 LCD display, scan mode, channel test and spectrum test, max 125 channels scan, 75 ohm BNC or F connector.

Feature: Download DOC: $\"SLM-1280\"$ SLM-1280

◇ Channel and spectrum testing

◇ Scan mode, spectrum mode and TILT mode

◇ Testing level, voltage, C/N etc

◇ Large LCD screen display

Parameter

Item	Specification
Frequency and Level
Frequency range	5 — 870MHz
Resolution bandwidth	280KHz ± 50KHz
Channels	All user Channels
Level range	30dBμV — 115dBμV
Accuracy	±1.5dBuV(under room temperature)
±2.5dBuV(- l0 — +50℃)
Input impedance	75Ω(BNC or F connector)
Wave detection	Peak value
Auto scan testing
Max channel scan	125 Channels
Scan range	All Channels within 46--870MHz
Scan speed	30 Channels/Min
Memory groups	23 Groups(00--22) Each group store Max 100 Channels.
Voltage
Voltage range	0 ~100VAC
Accuracy	±1.5V
Resolution	0.1V
C/N (only for reference)
Level range	80dBuV – 105dBuV
Others
Dimension	215mm x 95mm X 47mm
Weight	610g (without charger)
Working temperature	-10℃ ~ + 40℃
Display LCD	128X64 matrix LCD with back light
Power
DC supply	DC 7.2V/1.6Ah rechargeable battery
AC supply	AC 220V/50Hz±10%
Battery working hours	longer than 4.5 hours at continuous working mode
Recharging hours	12 ~ 14 hours.

Application

◇ Measure CATV signal level
