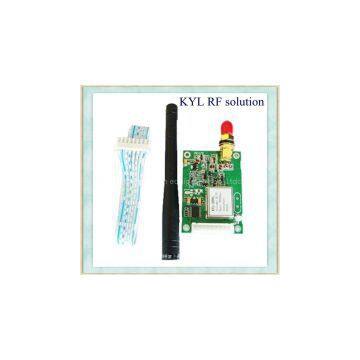

KYL-200L 5V 1W Power RF transceivers RS-232/RS-485/TTL 400-470MHz Frequency RF modules 2-3KM LOS
USD $40 - $40
/ Piece
2 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
KYL-200L rs232 ttl rs485 wireless transceiver 868mhz rf receiver module 2km-3km wireless data transmission for AMR System
-
KYL-200L 868MHz 915Mhz rf module /UHF wireless data transmitter and receiver module 2-3 km FSK modulation RF Module
-
433MHz rf module 2km-3km wireless receiver modules/rf transmitter for wireless telemetry control ttl/RS232/RS485 KYL-200L
-
KYL-200L rf transceiver 433mhz 2km module 500mW/1W wireless rs232 transmitter data transmission for amr system
-
wireless LED display system 2km distance moving sign controller 433MHz rf data transceiver module KYL-200L
-
Mini-size RF transceiver module 433mhz 1km Wireless Transmission TTL Data Transceiver MCU Wireless Control PCB Module KYL-500S
Product Details
| Brand Name | KYL | Place of Origin | China | |
| Model Number | KYL-200L |
Product Description
1)Specifications
* Power output: DC 5V (customize);
* RF power: ≤500mW(customized 500mW~1W);
* RF Effective Rate: 1200/2400/4800/9600/19200bps
* Interface baud rate: 1200/2400/4800/9600/19200bps optional
* Frequency Band: 433 MHz, 450MHz,470MHz, 868MHz, 915MHz
* Interface: standard RS-232/RS-485/TTL
* Communication Mode: Half-duplex
* Offering a transparent data interface, it is suitable for any standard or non-standard user protocols
* Channel: 8(Default),16/32(customized)
* Receive current: <28mA(TTL connect)
* Receive sensitivity: -123dBm(at)1200bps);-118dBm(at)9600bps)
* Transmitting current: <400mA;
* Sleep current: <20uA;
* RF Line-of-sight Range: >2km(BER=10-5(at)9600bps); >3km(BER=10-5(at)1200bps)
* Size: 53x38x10mm (without antenna port).
2) Installation dimension:
Welcome to contact Sarah for more information.
sales01(at)rf-data(dot)com
