Home > Products > rf modem > KYL-200L 2km-3km, 433MHz, 500mW/1W Wireless Transceiver Modules for AMR System RS485 to Wireless

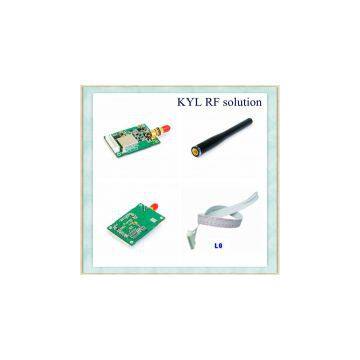

KYL-200L 2km-3km, 433MHz, 500mW/1W Wireless Transceiver Modules for AMR System RS485 to Wireless
USD $40 - $40
/ Piece
2 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
KYL-200L Data Module 2km-3km Distance Wireless Transmission for AMR System RS232/RS485/TTL to Wireless
-
KYL-500L UHF Wireless Data Modules 433MHz for Wireless Dish-ordering System, PDA, TTL Interface
-
KYL-818 Wireless I/O Module, 8-ch Isolated Input, 8-Isolated relay output, Wireless ON-OFF Control
-
KYL-300H 10km Radio Modem 5W RF Module 400Mhz/433MHz/470MHz Modbus RS485 to Wireless
-
KYL-300I 2km-3km 433MHz Wireless Transmitter DB9 Connector to PC, Wireless LED sender, to replace cable
-
KYL-210 smart rf transceiver module RS232 good for embedded system
Product Details
| Place of Origin | China | |
| Model Number | KYL-200L |
Product Description
Data Sheet:
Power output: DC 5V (customize)
RF power: ≤500mW(customized 500mW~1W)
RF effective rate: 1,200/2,400/4,800/9,600/19,200bps
Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps optional
Frequency band: 433 MHz, 450MHz,470MHz
Interface: standard RS-232/RS-485/TTL
Communication mode: half-duplex
Channel: 8(default),16/32(customized)
Receive current: less than 28mA(TTL connect)
Receive sensitivity: -123dBm@1,200bps); -118dBm@9,600bps)
Transmitting current: less than 400mA
Sleep current: less than 20uA
RF line-of-sight range: more than 2km (BER=10-5@9,600bps);
3km (BER=10-5@1,200bps)
Size: 53 x 38 x 10mm (without antenna port)
