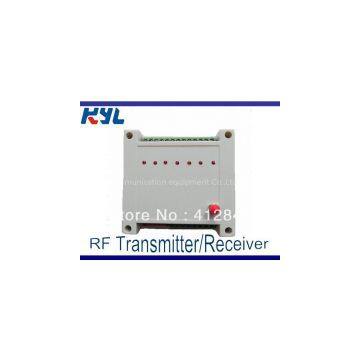

KYL-815 24V 4 way relay Wireless I/O module to Control ON-OFF Wireless Tank Level
USD $75 - $75
/ Piece
2 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
KYL-200L 5V 1W Power RF transceivers RS-232/RS-485/TTL 400-470MHz Frequency RF modules 2-3KM LOS
-
KYL-200L rs232 ttl rs485 wireless transceiver 868mhz rf receiver module 2km-3km wireless data transmission for AMR System
-
KYL-200L 868MHz 915Mhz rf module /UHF wireless data transmitter and receiver module 2-3 km FSK modulation RF Module
-
433MHz rf module 2km-3km wireless receiver modules/rf transmitter for wireless telemetry control ttl/RS232/RS485 KYL-200L
-
KYL-200L rf transceiver 433mhz 2km module 500mW/1W wireless rs232 transmitter data transmission for amr system
-
wireless LED display system 2km distance moving sign controller 433MHz rf data transceiver module KYL-200L
Product Details
| Brand Name | KYL | Place of Origin | China | |
| Model Number | KYL-815 |
Product Description
This 4-way ON-OFF module is to transmit the ON-OFF condition to a remote place wirelessly in time. When here the switch condition is ON, the output in the remote place is ON. When the local switch condition is OFF, the other terminal is OFF.
Features:
1. 4-way isolated input, high reliability and stability.
2. 4-way relay dry contact output, contact current is 220V, 5A.
3.Collocated with a wireless data module inside whose transmitting distance is about 2km-3km;
4.the working frequency 433MHz (450 or 470MHz also available ); (pls tell us what frequency you need ? )
5.RF power: 1000mW;
6.Receiving sensitivity: -120dBm
7. Receiving current: 60mA; transmitting current: 350mA
8. Power supply: DC 12V-30V
9.data rate : 1200pbs/2400bps/4800bps/9600bps/19200bps (pls tell us what data rate you need ? )
9. Dimension: 95mm x 90mm x 40mm
Welcome to contact Sarah for more information.
sales01(at)rf-data(dot)com
