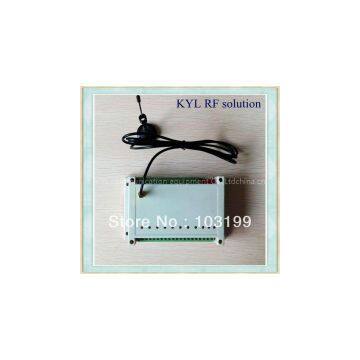

KYL-818 8-way wireless io module for 2km-3km remote pump control 433mhz relay wireless control light on-off control
USD $115 - $115
/ Piece
2 Pieces(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
KYL-818 wireless i/o module 8-ch Input 8-ch relay output 1 master working with 4 slaves KYL-813 in pump control application
-
KYL-815 4-way industry i/o module 433MHz 2km-3km ON-OFF wireless control tank level controller
-
KYL-815 4-way on-off control module 2km-3km remote pump water level automation control 433MHz wireless i/o module
-
KYL-815 4-way industry i/o module 433MHz 2km-3km ON-OFF wireless control tank level controller
-
KYL-815 433MHz 4-way RF wireless I/O Module for 2km-3km remote pool pump control on-off control switch module
-
KYL-815 24V 4-way wireless io Module 433mhz input output module for 2km-3km valves on-off control
Product Details
| Brand Name | kyl | Place of Origin | China | |
| Model Number | KYL-818 |
Product Description
Characteristics:
1. 8-way isolated input, high reliability and stability.
2. 8-way relay dry contact output, contact current is 220V, 5A.
3. Collocated with a wireless data module inside whose transmitting distance is about 2km-3km; the working frequency 433MHz (400-470MHz); RF power: 1000mW; Receiving sensitivity: -123dBm
4. Receiving current: 60mA; transmitting current: 350mA
5. Power supply: DC 12V-30V
6. Dimension: 145mm*90mm*40mm
Application:
example 1: point to point to control
example 2: point to multipoint control(a data module controls some KYL-818 I/O modules
IF you have any questions ,pls contact Sarah :
sales01(at)rf-data(dot)com
