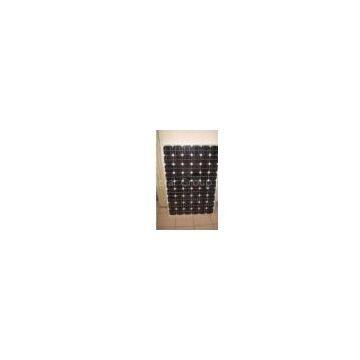

Mono 165w Solar Panel
US$ 0.7/ - 0.7/
/ Piece
40 Pieces(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | WT mono 165w |
Product Description
| MONO or POLY | MONO |
| Maximum power (Wp) | 165W |
| Maximum power voltage (V) | 35.0 |
| Maximum power current (A) | 4.57 |
| Open circuit voltage (V) | 42 |
| Short circuit current (A) | 5.12 |
| Size of solar cells (mm) | 125×125mm |
| Number of cells (Pcs) | 72 |
| Size of module (mm) | 1580×808×45 |
| Brand Name of Solar Cells | |
| Maximum system voltage (V) | 1000 |
| Temperature coefficients of Isc (%) | 0.0650.015%/ |
| Temperature coefficients of Voc (%) | -2.230.1mv/ |
| Temperature coefficients of Pm (%) | -0.5+-0.05/ |
| Temperature coefficients of Im (%) | +0.1/ |
| Temperature coefficients of Vm (%) | -0.38/ |
| Temperature Range | -40-+85 |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 15 |
| Junction Box Type | GY-BOX-10C( TUV ) |
| Length of Cables (mm) | 900mm |
| Cell Efficiency (%) | 16.3% |
| Module Efficiency (%) | 13.71% |
| Output tolerance (%) | 5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25 |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 2PCS/CTN |
