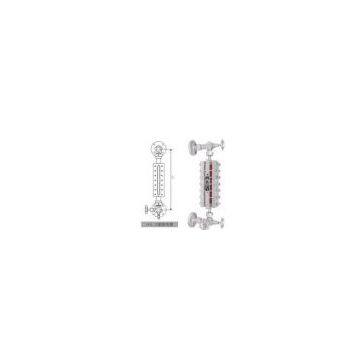

USB double color glass plate liquid level gauge
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Beixing | Place of Origin | China | |
| Model Number | USB |
Product Description
General information:
USB double color glass plate liquid level gauge is used for indicating the liquid level in the containers of petroleum, chemical and medicine industries.
Features:
1. Displayed in double colors, the liquid displays red
and the gas displays white.
2. Simple structure, convenient maintain and durable in use
3. There is stainless ball in the both heads of needle valves, when the glass tube breaks, the ball will stop the liquid leakage automaticallyThe main technology parameters
2. Medium temperature: ≤250 ℃; frost resistance type: -16~0 ℃
3. Working pressure: 1.6,2.5,4.0,6.3MPa
4. Needle valves working pressure: ≥0.3MPa
5. Material: Ⅰ-carbon steel Ⅱ-1Cr18Ni9Ti
6. Connection way:
Flange- A plate surface,PN2.5 DN20,HG20592~20635-97
B raised face, PN2.5 DN20, HG20592~20635-97
B raised face, PN4.0,6.3 DN20, HG20592~20635-97
Thread-C-G3/4”
7. The steam pressure of jacked –type: ≤0.6MPa
Tube size: M12*1, internal threadContact Us
