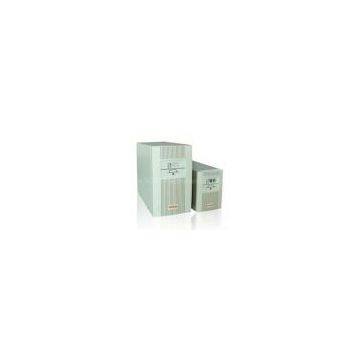

High Frequency Online UPS HP9110E Series 1-3KVA

Model

HP9110E 1KT

HP9110E2KT

HP9110E3KT

HP9110E 1KT-XL

HP9110E2KT-XL

HP9110E 3KT-XL

Capacity

VA/W

1KVA

/0.7KW

2KVA/1.4KW

3KVA/2.1KW

1KVA

/0.7KW

2KVA/1.4KW

3KVA/2.1KW

Input

Rated Voltage

220/230/240VAC

Voltage Range

120-300VAC

Frequency Range

50Hz:46-54Hz:；60Hz::56-64Hz

Power Factor

0.97

Output

Rated Voltage

220/230/240×（1±2%）VAC

Frequency

Synchronization range (line mode);50 or 60×（1±0.2%)Hz(Battery mode)

Waveform

Sine wave

Power factor

0.7 or 0.8 Optional

Voltage Distortion

3%

4%

4%

3%

4%

4%

Overload Capability

110%-150% for 30s; ≥150% for 200 ms

Current Crest Ratio

3:1

Connection

IEC320*4

IEC320*6

IEC320*3& Terminal block

IEC320*4

IEC320*6

IEC320*3& Terminal block

Battery

Type

Sealed, maintenance-free lead-acid battery

Quantity

3 pieces

8 pieces

8 pieces

Depends on the required back-up time

Backup time( Full load)

5mins

9mins

5mins

Depends on the required back-up time

Recharge Time

5 hrs to 90% of capacity

Depends on the required back-up time

Transfer Time

Zero transfer time
