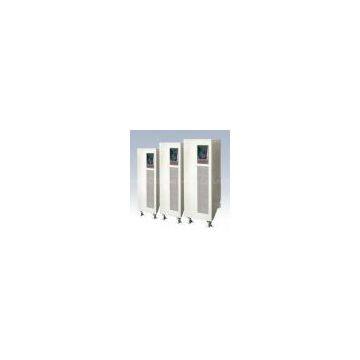

High Frequency Online UPS HP9110E 6-10KVA (1Ph in/1Ph out)

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

SOROTEC

Place of Origin

China

Product Description

Delivery Time:Within 15-30days after receiving your 30% TT deposit
Certification:CE,ROHS,ISO9000

Key Features
● True online double conversion technology
● Wide input voltage range
● Zero transfer time
● Protection against all types of power problems
● No add-on CNTL unit required for parallel connection
● Low initial investment and flexible for future expansion
● Highest reliability and maximum performance for power sharing and redundancy
● Equipped with Maintenance Bypass Switch
● Smart RS232 and Intelligent Slot Interface
● Sealed lead-acid, maintenance free battery
● N+X Parallel Redundancy and Capacity Expansion

Applications
Servers, Data-center, Critical network devices, Sensitive electronic equipment, Telecom, Computer field, bank system, communications, postal service, power industry, medical treatment field, national defense field, chemical industry, and many other fields. It’s capable in offering solution for various utility power problems…

Technical Specifications of Online UPS HP9110E HP9310E 6-20KVA

Model		HP9110E? 6KT	HP9110E? 10KT	HP9110E 6KT-XL	HP9110E 10KT-XL	HP9310E 10KT-XL	HP9310E? 15KT-XL	HP9310E 20KT-XL
Capacity	VA/W	6KVA /4.2KW	10KVA /7KW	6KVA /4.2KW	10KVA /7KW	10KVA /7KW	15KVA /10.5KW	20KVA /14KW
Input	Rated Voltage	220/230/240VAC
	Voltage Range	176-276VAC				304-478VAC
	Frequency	50Hz:46-54Hz:；60Hz::56-64Hz
	Power Factory	0.98				0.95
	Wire Connection	Wire connecting terminal
Output	Voltage	220/230/240×（1±2%）VAC
	Phase	Single Phase				3 Phase
	Waveform	Pure sine wave
	Voltage Distortion	2% THD(linear load); 6% THD(non-linear load)
	Overload Capacity	105%-130% can last for 10 minutes; ≥130 can last for 1s
	Current Crest Ratio	3:1
	Connections	Wire connecting terminal
Transfer Time		Zero transfer time
Maintenance Bypass Switch		With maintenance bypass switch
Indicators	LED Display	Load condition, battery state, battery, available power, inverter, bypass, overload, fault.
	Bypass	Alarm once per 2s
	Battery Discharge	Alarm once per 4s; in the case of low battery, it will alarm once
