Home > Products > Vacuum pump sets > cost-effective NKVW-300 vacuum pumping system/sets, low price, high quality
cost-effective NKVW-300 vacuum pumping system/sets, low price, high quality
- 100 Unit / Units per Month
- Shanghai
- T/T
You May Like
Product Details
Place of Origin | Chongqing, China | Brand Name | NAKIN | |
Model Number | NKVW | Theory | Vacuum Pump | |
Structure | Multistage Pump | Usage | Other, Air Pump, vacuum supply | |
Power | Other, Electric, 9.5kw | Standard or Nonstandard | Other, as per user's option | |
Fuel | Other | Pressure | Other, as per user's option | |
Application | Other, Vacuum smelting |
Product Description
Application:

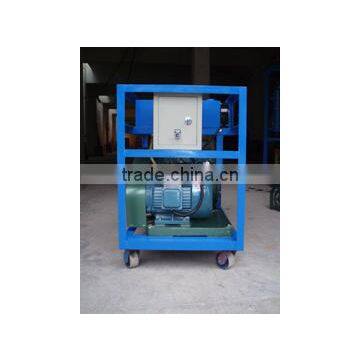

Series NKVW vacuum pumping system is composed of vacuum pump and Roots pump, Roots pump automatically works by the controlling of relays or electrical-contact vacuum gauge. NKVW equips an electrical control system and a cooling water system. It is quick start, big capacity of vacuum evacuating etc, widely used in vacuum smelting, welding, chemical, pharmaceutical and electric power system, particularly suitable for transformer vacuum operation.
Specifications
NKVW Double-stage Vacuum Pump System:
nbine the roots pump and vacuum pump
2.high efficiency to provide vacuum supply
Technical parameters:
Index | NKVW-30 | NKVW-70 | NKVW-150 | NKVW-300 |
Speed (L/S) | 30 | 70 | 150 | 300 |
Ultimate vacuum (Pa) | 7 | |||
Working vacuum (Pa) | 133 | |||
Power (kW) | 1.85 | 3.7 | 7 | 9.5 |
Power supply | 380V 3Ph 50Hz (As per user’s option) | |||
Weight (kg) | 240 | 400 | 580 | 1000 |
Dimension (mm) | 700*500*1200 | 880*600*1300 | 1000*700*1500 | 1350*720*1600 |
CQ NAKIN Vacuum Oil Purifier Co., Ltd is Oil Filtration/oil purifier Company which is a old and experienced oil filtration company, engage in waste oil recycling and filtration job for 20 years, we specially in developing mobile type transformer oil home filtration device, help customer to regenerate the used insulating oil in effective. We do welcome the customer visit our factory and give us a good advice. If you interested in our oil filtration machine, please contact us, we will provide you the complete technical support.
We will always adhere to the business philosophy of "Responsible for product, Responsible for user, Responsible for self ", Keep the faith to create the national brand, keep innovation, keep improving and Keep making the high quality products with first-class after-service for getting the customer’s trust and love. Really building a new era in Brand-NAKIN with our customers
We provide the features products as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
We,Chongqing Nakin Electromechanical CO.Ltd, assure that all materials and equipment being finished under this proposal shall be new and free of defects in workmanship and materials, and shall be of the kind and quality specified in the technical specification. If the purchaser received the goods and discovers defects in workmanship or material and so on, pls notifies the supplier promptly in writing or call, we have the responsibility to provide the new one and technical supports in first time.
As our company dealer, we will provide professional technical learning and support to help this product dealer can better sales and service, to establish our company a good brand image. We invites interested parties to establish a long-term friendly cooperation.
Welcome to inquiry. we all are at your service!!!
