NKVW-70(70 L/S) Germany Vacuum Pumping System
- Chongqing
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | NAKIN | |
| Model Number | NKVW | Theory | Vacuum Pump | |
| Structure | Multistage Pump | Usage | Air Pump | |
| Power | Electric |
Product Description
Series NKVW vacuum pumping system
Application:
Series NKVW vacuum pumping system is composed of vacuum pump and Roots pump, Roots pump automatically works by the controlling of relays or electrical-contact vacuum gauge. NKVW equips an electrical control system and a cooling water system. It is quick start, big capacity of vacuum evacuating etc, widely used in vacuum smelting, welding, chemical, pharmaceutical and electric power system, particularly suitable for transformer vacuum operation.
Technical parameters:
Index | NKVW-30 | NKVW-70 | NKVW-150 | NKVW-300 |
Speed (L/S) | 30 | 70 | 150 | 300 |
Ultimate vacuum (Pa) | 7 | |||
Working vacuum (Pa) | 133 | |||
Power (kW) | 1.85 | 3.7 | 7 | 9.5 |
Power supply | 380V 3Ph 50Hz (As per user’s option) | |||
Weight (kg) | 240 | 400 | 580 | 1000 |
Dimension (mm) | 700*500*1200 | 880*600*1300 | 1000*700*1500 | 1350*720*1600 |

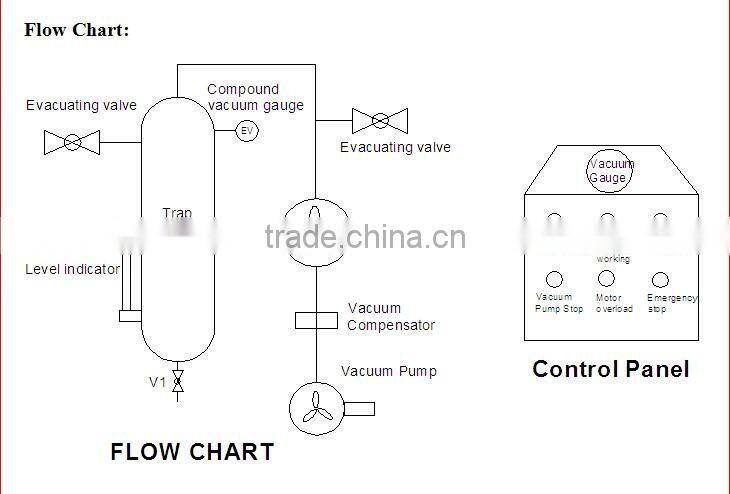

Flow Chart:
Parts Explanation:
Compound vacuum gauge: Connect with vacuum pump and Roots pump, when vacuum pump works, the machine vacuum value reach to the set-value, the booster pump will work automatically. Also it shows machine working vacuum.
Trap: Collect water and waste liquid
Level indicator: Show the water and waste liquid level
Roots pump: Pump air.
Vacuum pump: Pump air.
Vacuum compensator: Connecting device between the vacuum pump and roots pump.
Control panel Explanation:
Vacuum pump start: Startup vacuum pump
Vacuum pump stop: Stop vacuum pump
Roots pump working: When Roots pump works, this light will lighten.
Motor overload: When vacuum pump motor and roots pump motor are overload, this light will lighten, and alarm.
Power indicator: When you connect the right power, this light will lighten.
Emergency stop: If there is any bad accident, push this button to stop machine.

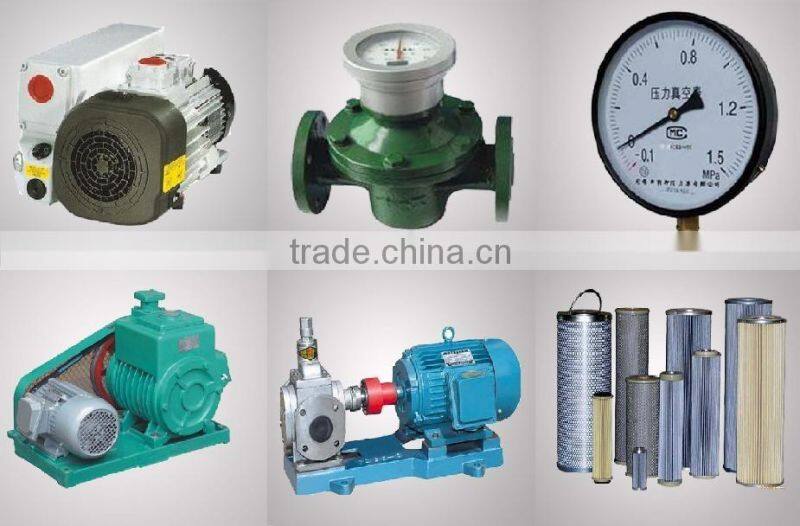

Oil Purifier Parts
Our products list as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
Our Certificates
Workshop:
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
