Product Details
| Material | Steel | Dimensions (L x W x H) (mm) | 920*320*370 | |
| Model Number | YTF-400 |
Product Description
Product Introduction
YTF-400 rail gauge regulator/ regulator for railway gauge
YTF400 rail gap adjuster (regular),the maximum pushing force is 40tons,at the normal situation,it could push 4-5 sets 12.5m 60kg/m rail,or it could push 2sets 25m 60kg/m rail.
Rail gap will change because of the weather and driving factors.
In order to get well the rail gap’s size,it need to adjust rail.
For YTF400 rail adjuster,it could adjust 50kg/m,60kg/m,75kg/m rail.
Main Parameter
Model | YTF400 |
1 Rated Thrust | 400kN |
2 Operating Stroke | 140mm |
3 Working cylinder rated pressure | 52Mpa |
4 No load efficiency | 2.2mm/a reciprocating |
5 Working cylinder quantity and inner diameter | 2xφ70mm |
6 Plunger pump quantity and inner diameter | 4xφ16mm |
7 Working cylinder gross capacity | 1115.8 cubic centimeter |
8 Net weight | 70Kg |
packing case weight | 20kg |
9 Machine size mm | 920* 320* 370mm |
10Packing size mm | 1050* 420* 430mm |

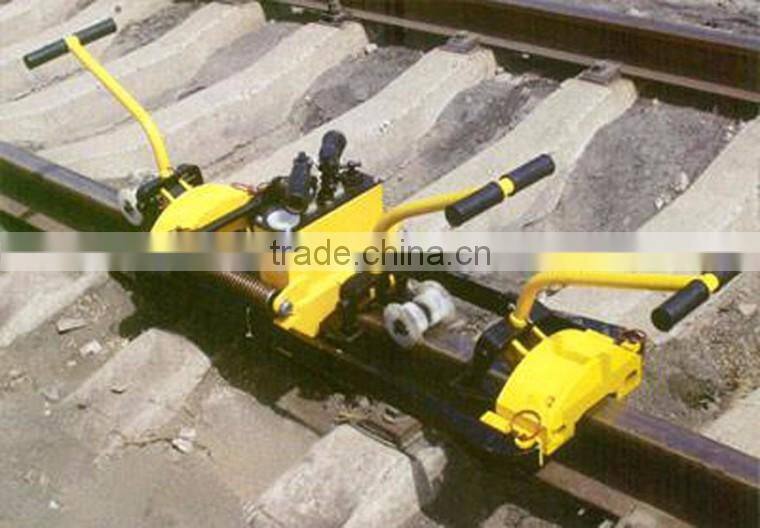

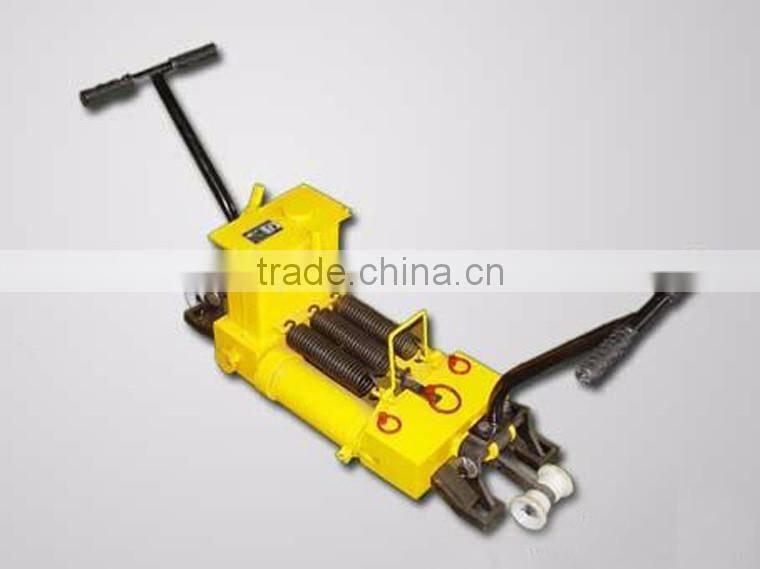

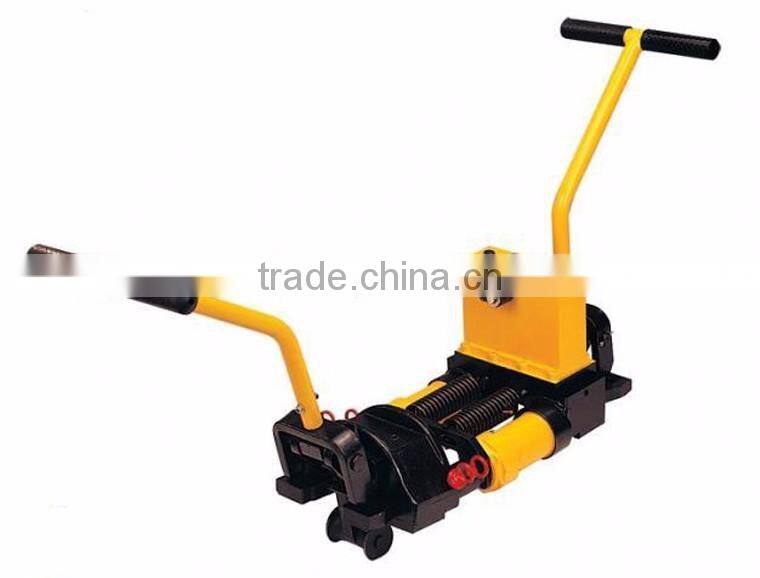

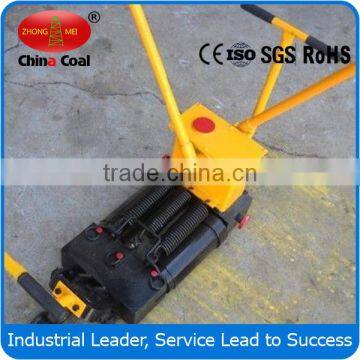

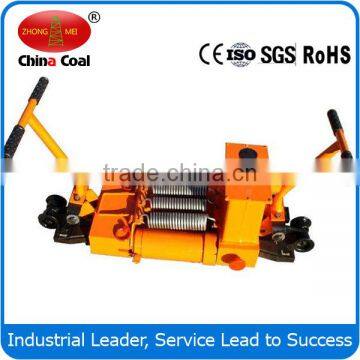

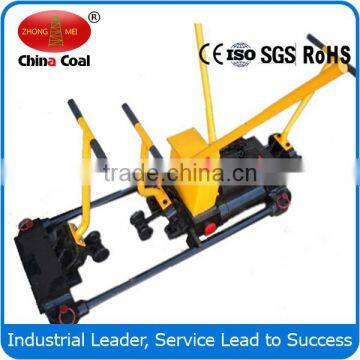

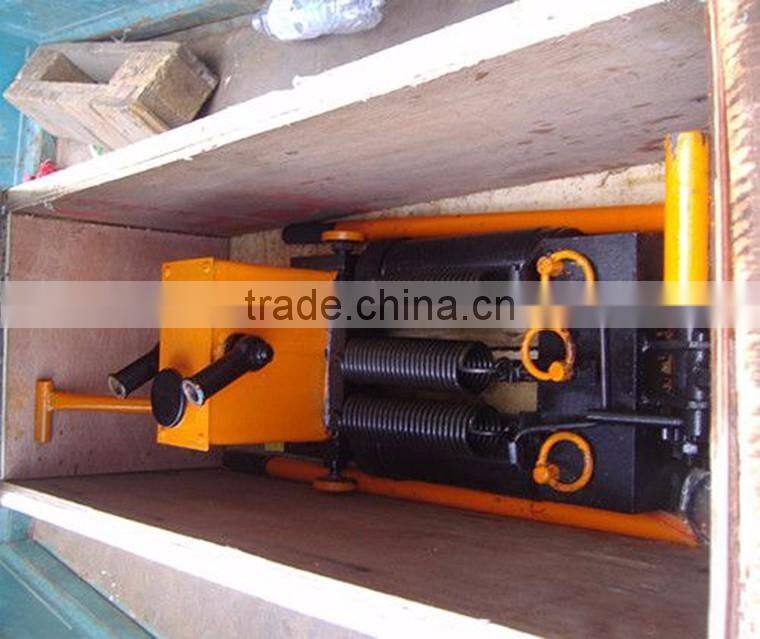

Figure Photos
