CDH-Y Subway Buffer

FOB Price

US$ 1 - 100 / Set

1 Set(Min. Order)

Port Qingdao shanghai ningbo shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Rail Stopper	Material	Steel
Dimensions (L x W x H) (mm)	Customer's Drawing	Place of Origin	Shandong, China
Brand Name	train track car stopper	Model Number	CDH, CDH

Product Description

CDH-Y Subway Buffer Introduction

1 CDH-Y type hydraulic cushioning sliding buffer stop parameter technical:

1.1 The center of the buffer head to the rail surface height:

For the standard rail vehicles:850±10mm

For the subway, light rail and other vehicles:500±10mm, 660±10mm,678±10mm,720±10mm

Other height can be designed as the car coupler which provides by customer

1.2 The size and the shape of the buffer head

For the standard rail vehicles:480*250mm flat shape

For the subway, light rail and other vehicles:This is matched with the size and the shape of the car coupler

1.3 The allowing impact speed of the vehicle:There are 4 classes according with the structural strength

Class one:CDH-Y-15 type:V≤15km/h

Class two:CDH-Y-20 type V≤20km/h

Class three :CDH-Y-25 type V≤25km/h

Class four:CDH-Y-30 type V≤30km/h

1.4 The level of total resistance(F) of the stop buffer:There are 3 classes according to different dampers:

Class one:2 couples of the dampers: F≥30t

Class two:3 couples of the dampers: F≥45t

Classs three: 4 couples of the dampers: F≥60t

1.5 After being impacted by the vehicle,the slid distance of the buffer stop ,please see attchment.

CDH-Y Subway Buffer Parameter

CDH-Y tppe

The center of the buffer head to the

rail surface height

The size and the shape

of the buffer head

For the standard rail vehicles

850±10mm

480*250mm flat shape

For the subway, light rail

and other vehicles

500±10mm, 660±10mm,

678±10mm,720±10mm

This is matched with the size

and the shape of the car coupler

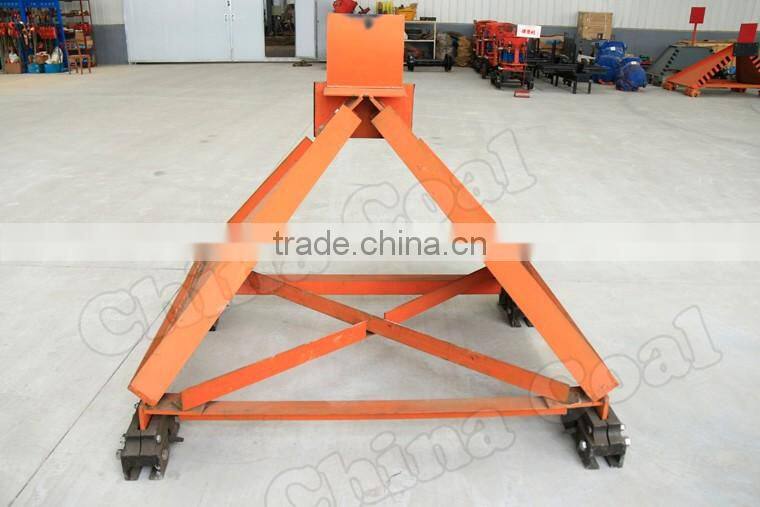

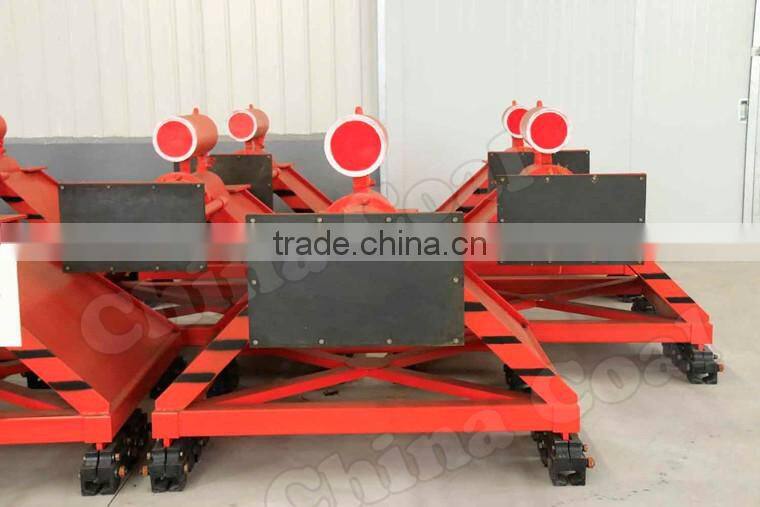

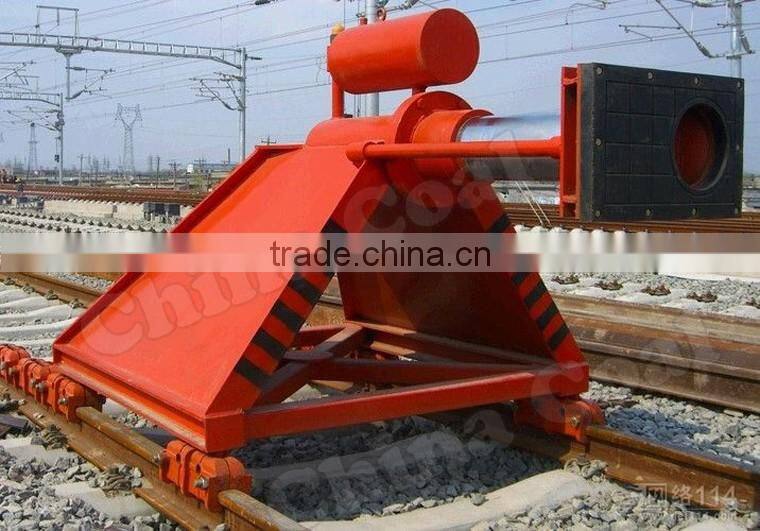

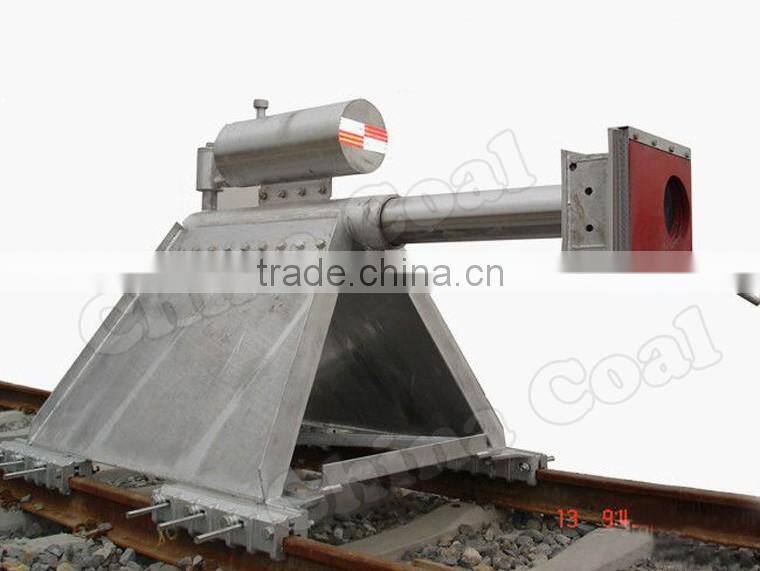

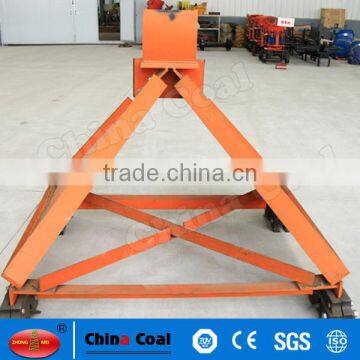

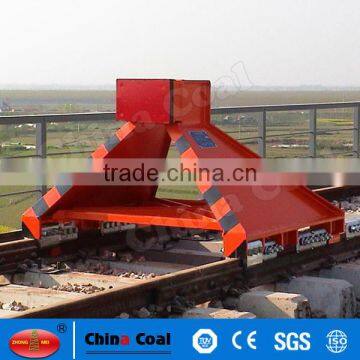

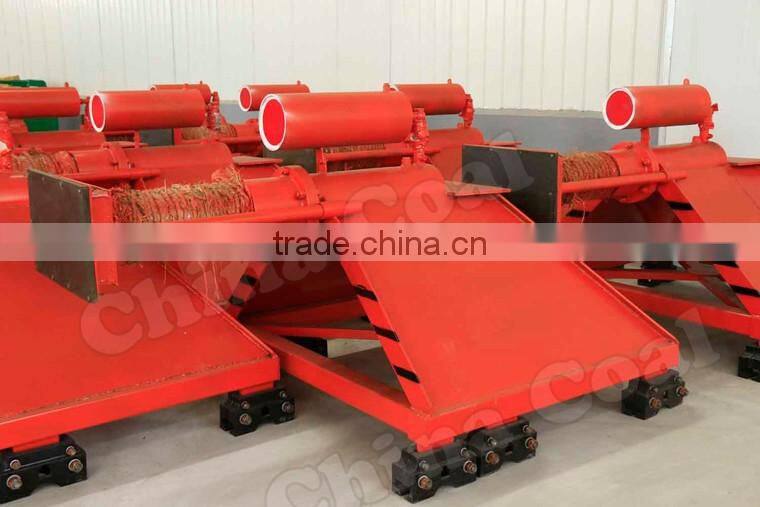

CDH-Y Subway Buffer Photos
