Factory Spot Supply Internal Combustion Rail Tamping Tool

Product Introduction

factory spot supply internal combustion rail tamping tool

ND-4 Rail Gasoline ballast tamper Novel design, compact structure, is a kind of stamping equipment, rapidly up and down, particularly convenient operation , suited to switch tamping homework.

1.Adopts two-stroke gasoline engine .

2.No noise, stable working, convenient operation.

3.Advanced design, reasonable structure, convenient maintenance, easy maintenance, small volume, light weight.

Main Parameter

factory spot supply internal combustion rail tamping tool

1. Engine POWER: 1.47kW

2. Exciting force:≥4.2kN

3. No-load amplitude:≥5mm

4. Vibration frequency: 120~150HZ

5. Vibrator beam diameter: 52mm

6. Rotation speed of eccentric block : 7000~8000r/min

7. Weight: 16kg

8. Dimension:1020×350×260(mm)

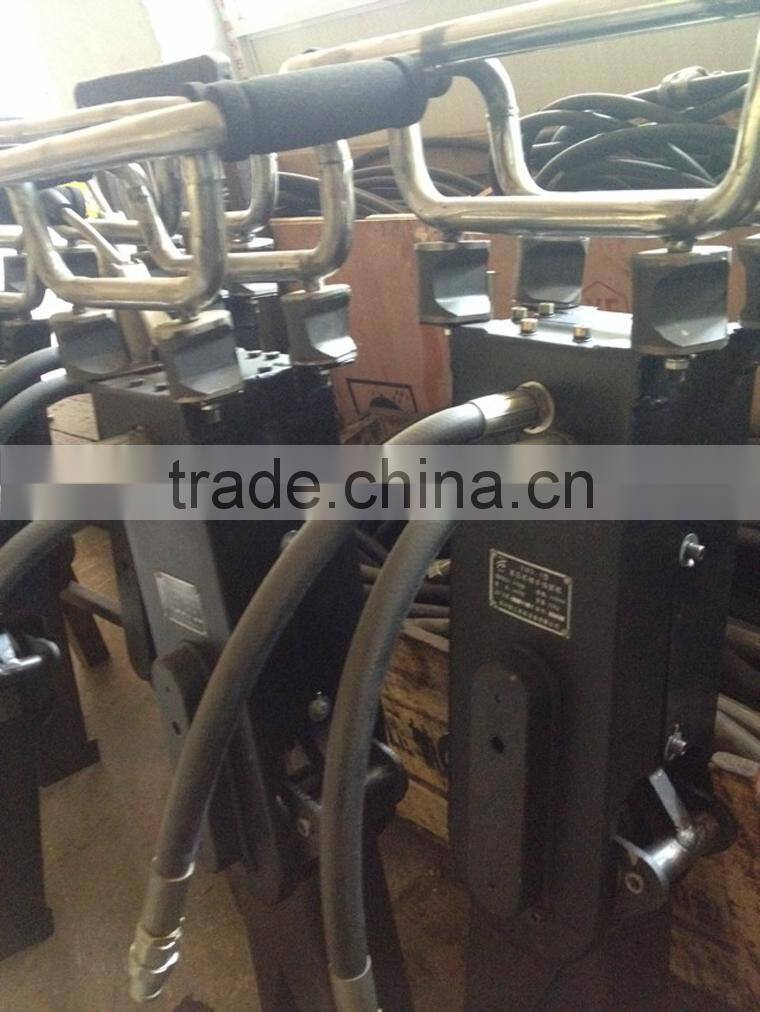

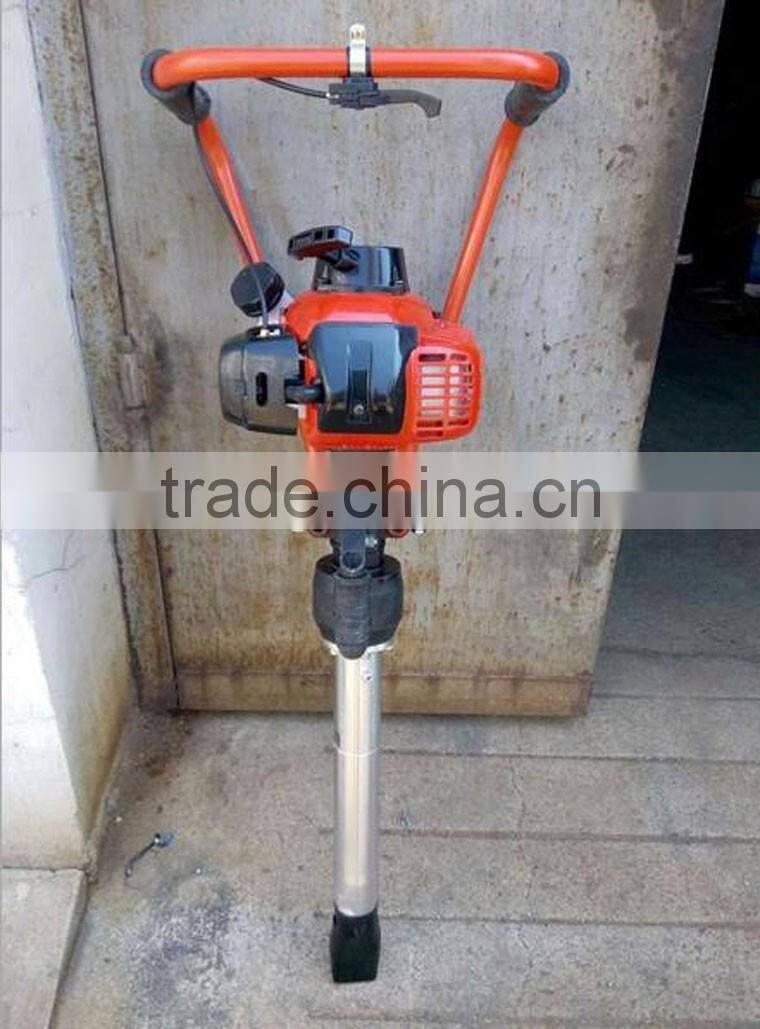

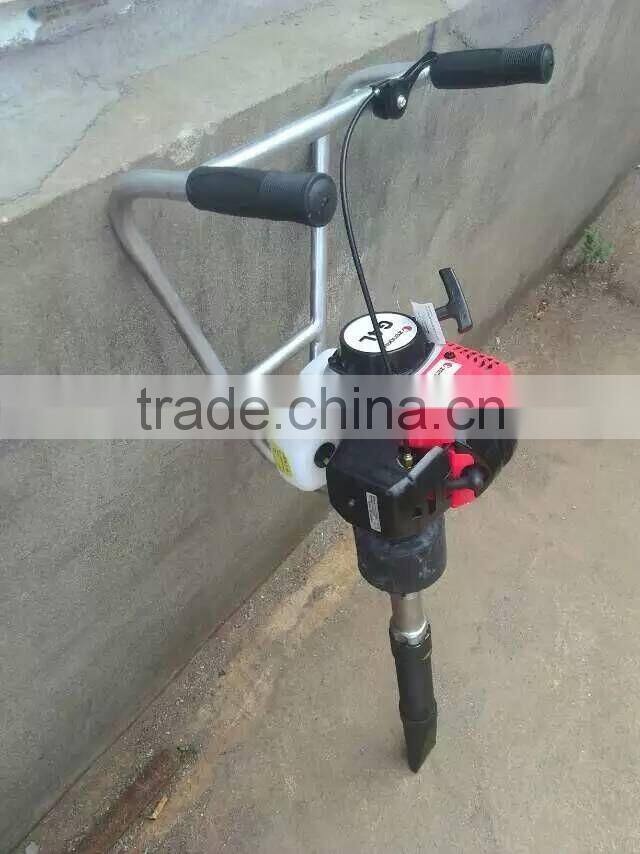

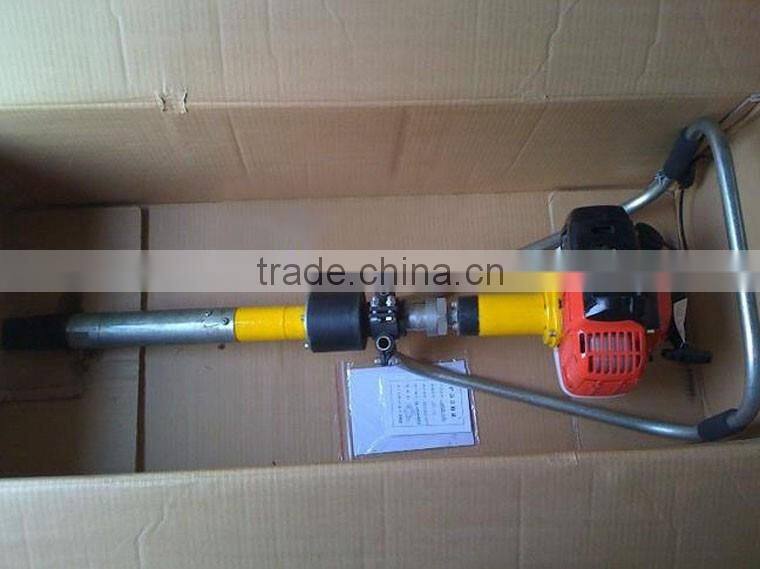

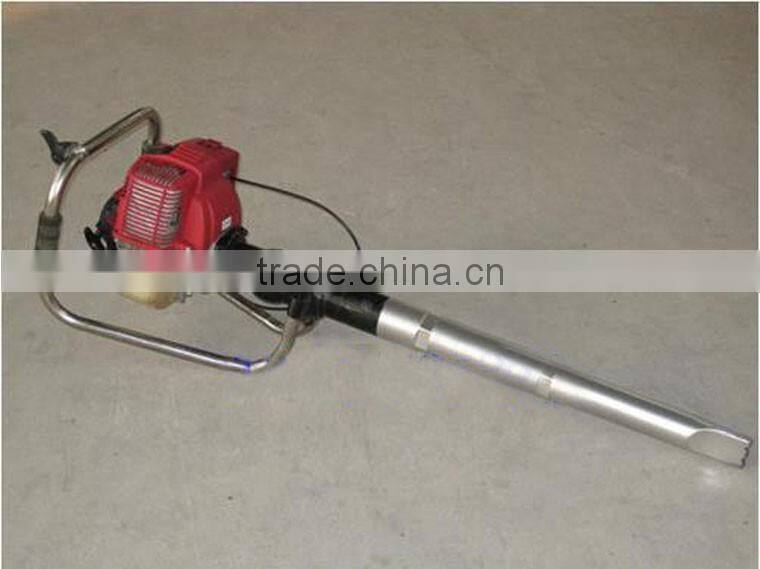

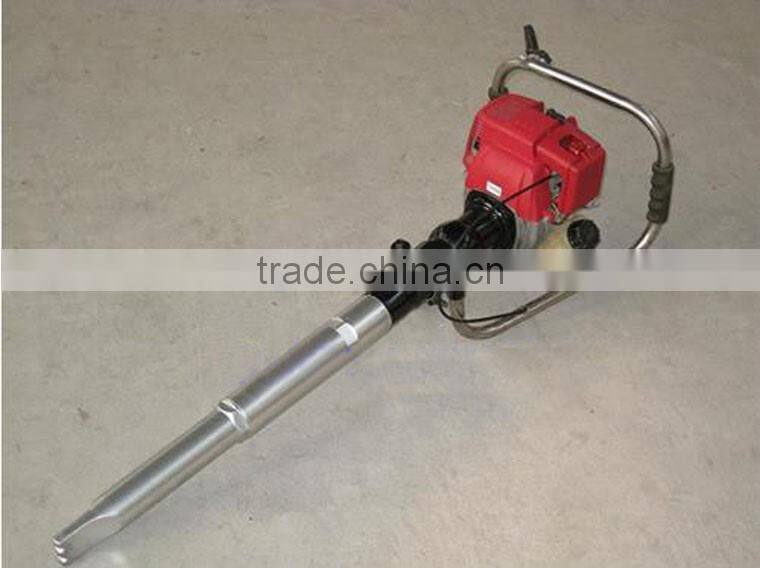

Figure Photos

factory spot supply internal combustion rail tamping tool
