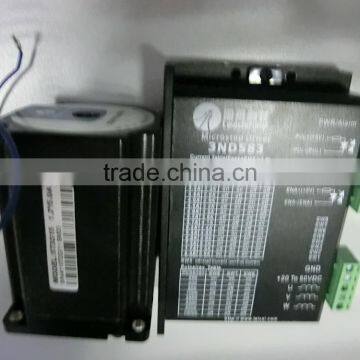

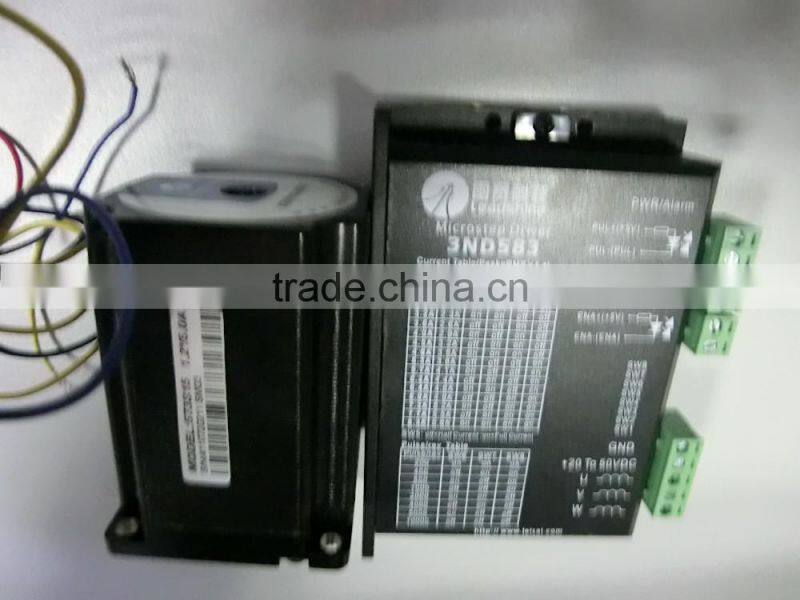

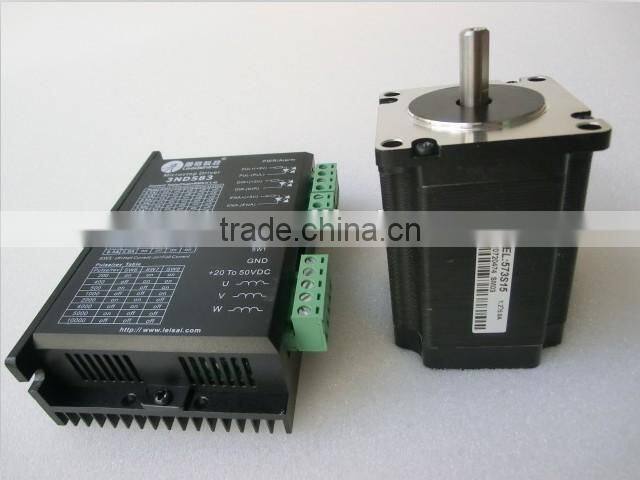

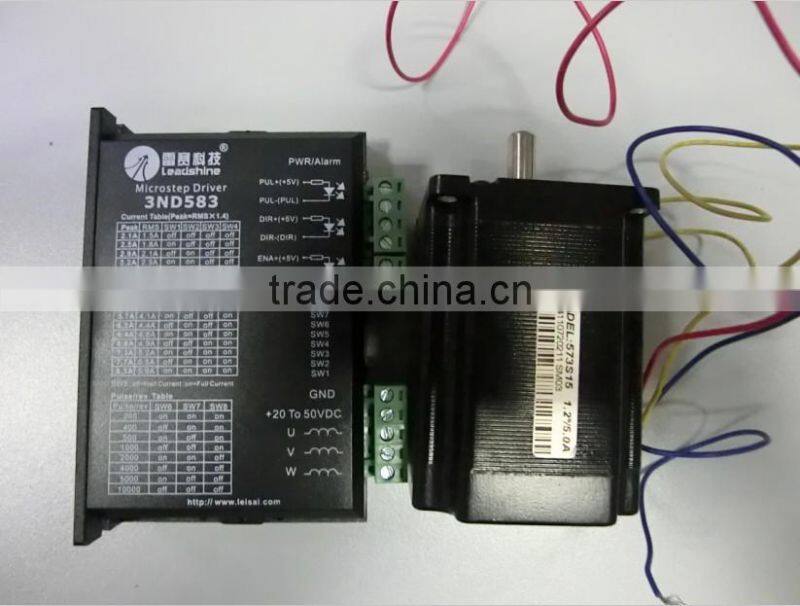

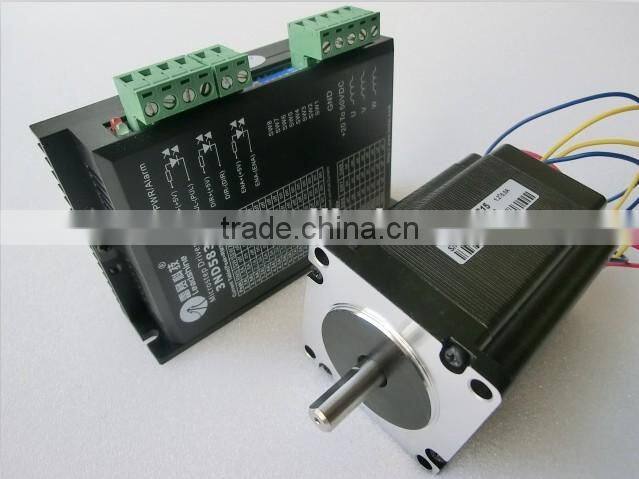

Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting
- SHENZHEN GUANGZHOU
- Credit Card PayPal
You May Like
-
573S09 &3ND583 /3DM583 Stepper Motor and Driver for for Co2 Laser Engraving and Cutting Machine x Axis
-
573S09 &3ND583 /3DM583 Stepper Motor and Driver for for x Axis of 1390,1290, 9060 Machine Without Gear
-
Leishine Stepper Motor Driver for Moting Co2 Laser Mechanical Parts
-
Leishine Stepper Motor 57HS22 and Driver M542 for y Axis for 1390 1290 9060 Machine
-
Leishine Stepper Motor 57HS22 and Driver M542
-
Leishine Stepper Motor 57HS22
Product Details
| Place of Origin | Guangdong, China | Brand Name | LEISHINE | |
| Model Number | 573s15 and 3ND583 | Phase | 3 | |
| Type | Other, stepper motor and driver | Certification | CE | |
| Step Angle(degrees) | 1.2 | Holding Torque | 1.5n.m | |
| Current / Phase | 5.2A |
Product Description
Common specifications
Step accuracy | +5% |
Temperature rise | 80°CMax |
Ambient temperature | -10°C -- +50°C |
Insulation resistance | 100MΩmin.500VDC |
Withstand | 500VAC for one minute |
Runout | 0.06 Max.(450g-load) |
Axial runout | 0.08 max.(450g-load) |
Technical Specifications
Model No. | phase | Step angle | Hold Torque | Rated current | Phase inductance | Phase resistance | Lead number | Rotor inertia | Positioning torque | Weight | Body length |
(°) | N.M | A | mH | Ohm | g.cm2 | Kg.cm | Kg | mm | |||
573S05 | 3 | 1.2 | 0.45 | 5.2 | 1.4 | 1.3 | 6 | 110 | 0.21 | 0.4 | 42 |
573S09 | 3 | 1.2 | 0.9 | 3.5 | 1.7 | 0.8 | 6 | 300 | 0.4 | 0.75 | 56 |

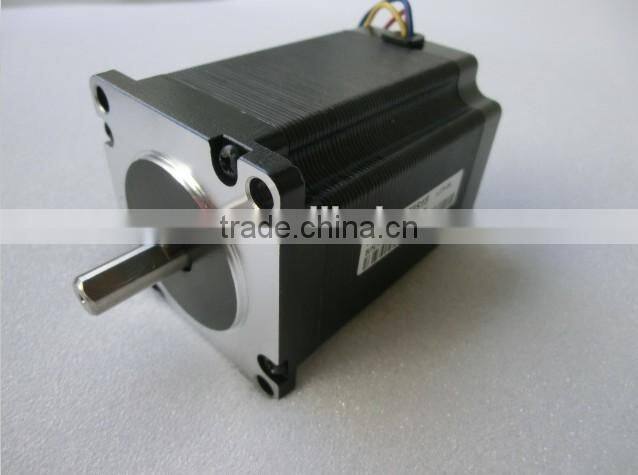

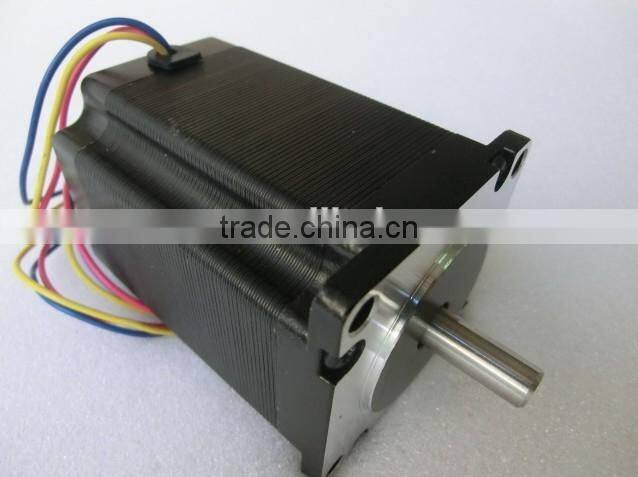

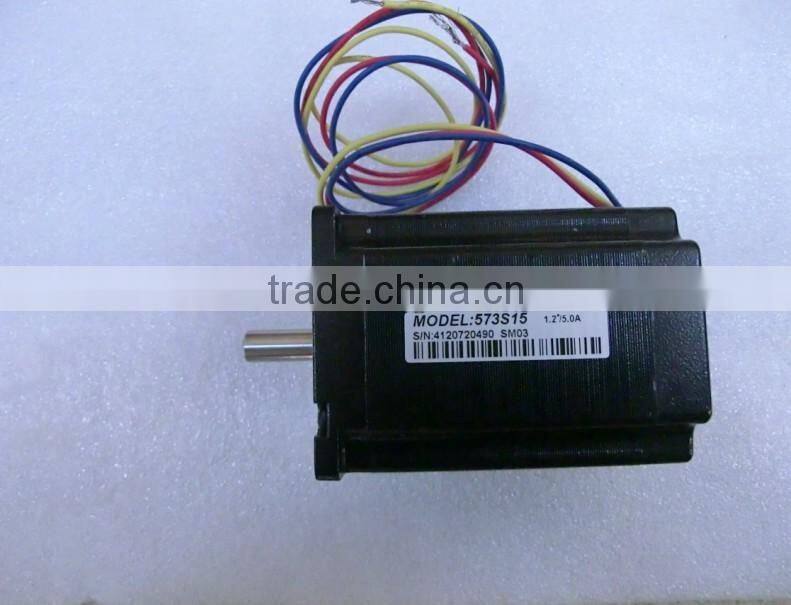

573S15 | 3 | 1.2 | 1.5 | 5.2 | 1.35 | 0.9 | 6 | 480 | 0.68 | 1.1 | 79 |
3ND583
Electrical Specifications
instructions | unit | min | Typ | max |
Output Current | A | 2.1 | - | 8.3 |
Input supply voltage | VDC | 18 | 36 | 50 |
Control signal input current | mA | 7 | - | 16 |
Step pulse frequency | KHz | 0 | - | 400 |
Pulse low time | μs | 1.2 |
|
|
Insulation resistance | MΩ | 500 |
|
|
