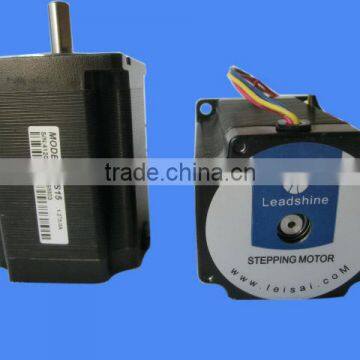

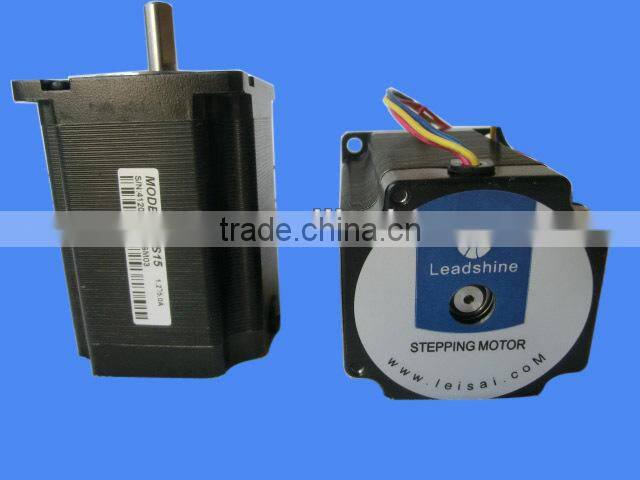

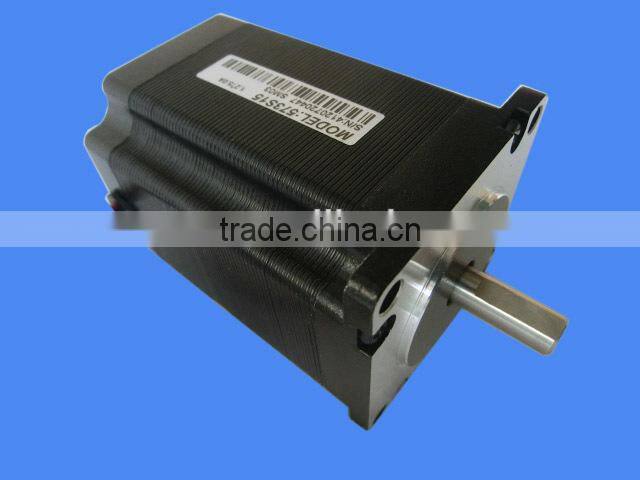

Ultra Low Noise Small Stepper Motor 573s15
- shanghai shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Leadshine | |
| Model Number | 573s15 | Motor Type | Stepper Motor |
Product Description
Specifications
Ultra low noise small stepper motor 573s153 phase stepper motor
warranty 1year
Step angle 1.2
Hold Torque 1.5
< Ultra low noise small stepper motor 573s15 >
1.leadshine 573s15.
2.high quality with low price.
3.1year warranty.
4.3 phase stepper motor
5.Common specifications:
Step accuracy | +5% |
Temperature rise | 80°CMax |
Ambient temperature | -10°C -- +50°C |
Insulation resistance | 100MΩmin.500VDC |
Withstand | 500VAC for one minute |
Runout | 0.06 Max.(450g-load) |
Axial runout | 0.08 max.(450g-load) |
6.Technical Specifications:
Model No. | phase | Step angle | Hold Torque | Rated current | Phase inductance | Phase resistance | Lead number | Rotor inertia | Positioning torque | Weight | Body length |
(°) | N.M | A | mH | Ohm | g.cm2 | Kg.cm | Kg | mm | |||
573S05 | 3 | 1.2 | 0.45 | 5.2 | 1.4 | 1.3 | 6 | 110 | 0.21 | 0.4 | 42 |
573S09 | 3 | 1.2 | 0.9 | 3.5 | 1.7 | 0.8 | 6 | 300 | 0.4 | 0.75 | 56 |
573S15 | 3 | 1.2 | 1.5 | 5.2 | 1.35 | 0.9 | 6 | 480 | 0.68 | 1.1 | 79 |
Laser engraving & cutting machine spare parts
1.laser tube difference power as:~,60W,70W,80W,100W,110W,130W.etc.
2.RECI laser tube :RECI W2.W4,W6,W8.
3.Water cooling systerm: air pump and water chiller. (CW 3000 water chiller,CW5000 water chiller etc)
4.laser mirror and focus lens : made in China and imported from UAS.
5.Laser common and RECI power supply:DY10,DY13,DY20.
6.Laser control system such as:MPC6535,6565,AWC608
7.mechanical parts and optical parts.
8.Any kind of laser engraving and cutting parts that you need.
