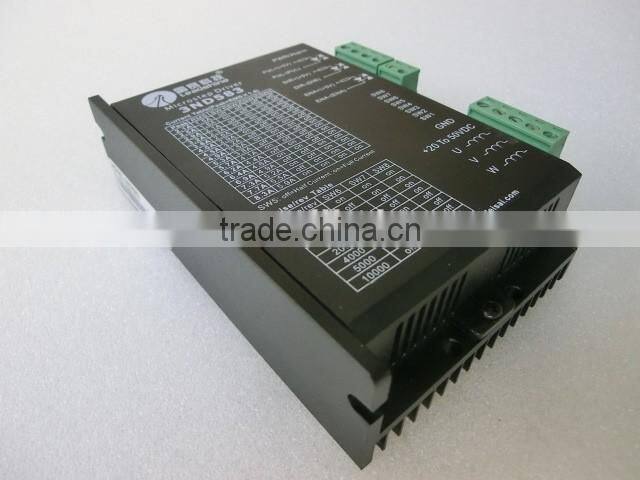

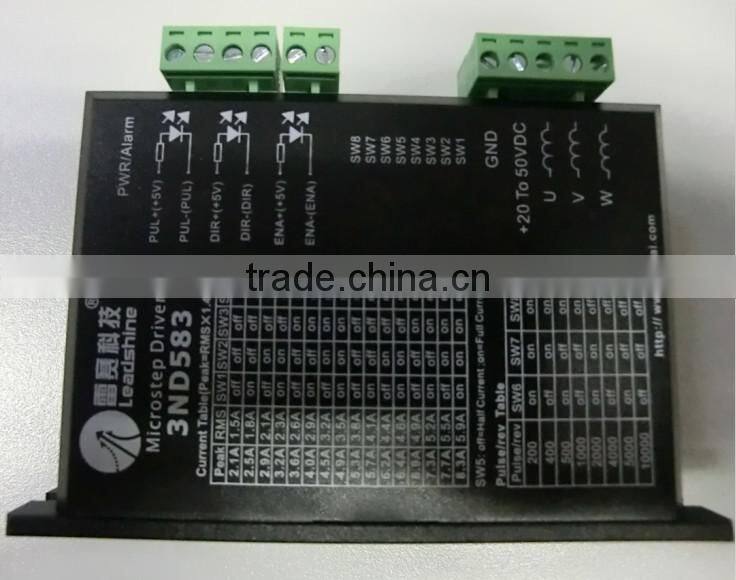

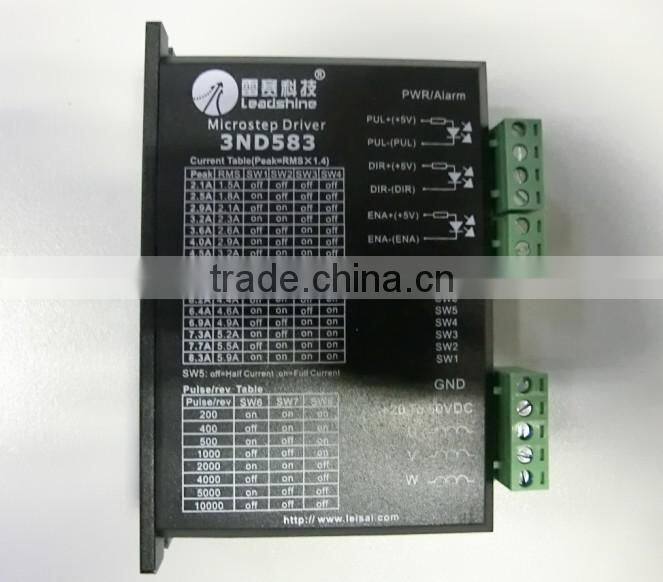

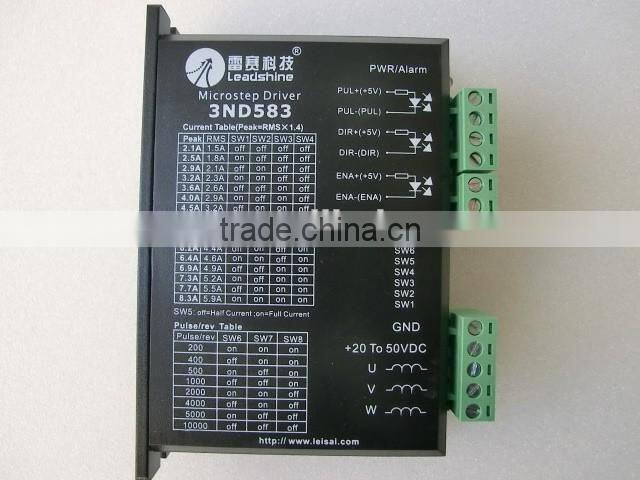

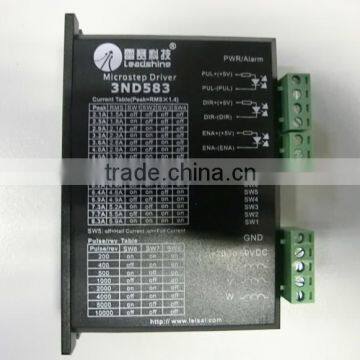

3ND583 Leishine Stepper Driver for Laser Engaving and Cutting Machine
- SHENZHEN GUANGZHOU
- Credit Card PayPal
You May Like
-
Leishine Steper Motor and Driver 573S15 and 3ND583 For Laser Engraving and Cuting
-
573S09 &3ND583 /3DM583 Stepper Motor and Driver for for Co2 Laser Engraving and Cutting Machine x Axis
-
573S09 &3ND583 /3DM583 Stepper Motor and Driver for for x Axis of 1390,1290, 9060 Machine Without Gear
-
Leishine Stepper Motor Driver for Moting Co2 Laser Mechanical Parts
-
Leishine Stepper Motor 57HS22 and Driver M542 for y Axis for 1390 1290 9060 Machine
-
Leishine Stepper Motor 57HS22 and Driver M542
Product Details
| Brand Name | Leadshine | Model Number | 3ND583 | |
| Motor Type | Stepper Motor |
Product Description
3ND583 leishine stepper driver for laser en
gaving and cutting machine
Electrical Specifications
instructions | unit | min | Typ | max |
Output Current | A | 2.1 | - | 8.3 |
Input supply voltage | VDC | 18 | 36 | 50 |
Control signal input current | mA | 7 | - | 16 |
Step pulse frequency | KHz | 0 | - | 400 |
Pulse low time | μs | 1.2 |
|
|
Insulation resistance | MΩ | 500 |
|
|
Operating current setting
Output Current - Peak | Output rms current | SW1 | SW2 | SW3 | SW4 |
2.1 A | 1.5A | off | off | off | off |
2.5 A | 1.8A | on | off | off | off |
2.9 A | 2.1A | off | on | off | off |
3.2 A | 2.3A | on | on | off | off |
3.6 A | 2.6A | off | off | on | off |
4.0 A | 2.9A | on | off | on | off |
4.5 A | 3.2A | off | on | on | off |
4.9 A | 3.5A | on | on | on | off |
5.3 A | 3.8A | off | off | off | on |
5.7 A | 4.1A | on | off | off | on |
6.2 A | 4.4A | off | on | off | on |
6.4 A | 4.6A | on | on | off | on |
6.9 A | 4.9A | off | off | on | on |
7.3 A | 5.2A | on | off | on | on |
7.7 A | 5.5A | off | on | on | on |
8.3 A | 5.9A | on | on | on | on |
Micro-step breakdown of set
Number steps/turn | SW6 | SW7 | SW8 |
200 | on | on | on |
400 | off | on | on |
500 | on | off | on |
1000 | off | off | on |
2000 | on | on | off |
4000 | off | on | off |
5000 | on | off | off |
10000 | off | off | off |
