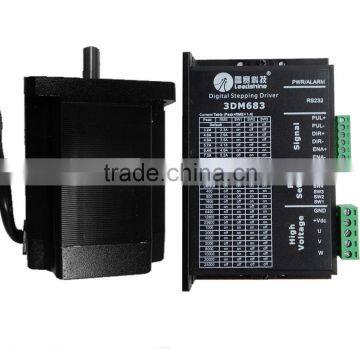

Leadshine 3-phase Stepper Motor and Drive kit 3DM683 + 863S42 4.3 N.m (595 Oz-In) Nema 34 for Y AXIS 1318 1325 CO2 laser machine

3DM683

Introductions:

The 3DM683 is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the 3DM683 an ideal solution for applications that require low-speed smoothness.

Compared to the 3ND583, broader input voltage and output current ranges make the 3DM683 can drive much more motors than the 3ND583, also smaller motor noise, lower heating.

Features:

*Extra-low motor noise offers excellent quietness

*Anti-Resonance, provides optimum torque and nulls mid-range instability

*Self-test and Auto-configuration technology, offers optimum responses with different motors

*Microstep resolutions programmable, from full-step to 102,400 steps/rev

*Supply voltage up to +60 VDC

*Output current programmable, from 0.5A to 8.3A

*Pulse input frequency up to 200 KHz

*Automatic idle-current reduction

*Supports PUL/DIR and CW/CCW modes

*Suitable for 3/6 leads 3-phase motors

Specifications:

Applications:

Suitable for a wide range of stepping motors, from NEMA frame size 17 to 34. It can be used in various kinds of machines, such as laser cutters, laser markers, high precision X-Y tables, labeling machines, and so on. Its unique features make the 3DM683 an ideal solution for applications that require both low-speed smoothness and high speed performances.

863S42

Features:

*3-phase hybrid step motor

*High torque design

*Standard NEMA 34 dimensions

*Delta wiring

*Optimized for microstepping

Specifications:

General

Matching drives:

Applications:

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.
