Product Details
Place of Origin | Jiangsu, China | Brand Name | SMAC | |
Model Number | UDM25(32/40/50/63/80) | Drill Type | Drill Press | |
Max. Drilling Diameter | 25~80mm | Rated Input Power | 2.2/3/5.5KW | |
Rated Torque | 160~800N.m | Weight | 960~2500KG |
Product Description
driller
Specifications
Drilling, milling and tapping
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Product Descriptio

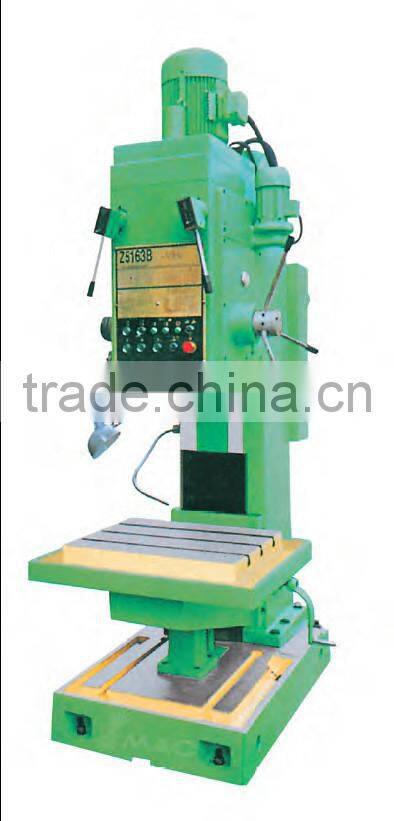

Square-column vertlcal drilling machine is a universal general-purpose machine.It's used for counter-sinking,spotfacing drilling,tapping,boring,reaming,etc.Themachlne nas catch the flnction of tap-automatically reversing device which is sulfablefor tappng ofblind and determined holes.The machine has high effciency,high accuracy,low noise,wide range of variable speed,centralized contols goodlooking appearance,easy maintenance and operation
driller
SpecificationModel | Unit | 15001 | 15002 | 15003 | 15004 | 15005 | 15006 |
UDM25 | UDM32 | UDM40 | UDM50 | UDM63 | UDM80 | ||
Max. drilling diameter (<=50kg/mm2) | mm | 25 | 32 | 40 | 50 | 63 | 80 |
Max. feeding resistance | N | 9000 | 10000 | 16000 | 16000 | 30000 | 30000 |
Max. torque of main shaft | N.m | 160 | 250 | 350 | 350 | 800 | 800 |
Max. motor | kw | 2.2 | 2.2 (3) | 3 | 3 | 5.5 | 5.5 |
Morse taper of main spindle | Morse | No.3 | No.4 | No.4 | No.5 | No.5 | No.6 |
Distance from the shaft center to guide surface | mm | 280 | 280 | 335 | 335 | 375 | 375 |
Travel of main shaft box | mm | 210 | 210 | 200 | 200 | 250 | 200 |
Strokes of main spindle | mm | 200 | 200 | 250 | 250 | 250 | 250 |
Steps of main spindle | mm | 9 | 12 | 12 | 12 | 9 | 9 |
Spindle speed | rev/mm | 50-2000 | 45-2000 | 31.5-1400 | 31.5-1400 | 40-570 | 40-570 |
Spindle feeding | mm/rev | 0.065-1.8 | 0.056-1.5 | 0.056-1.8 | 0.056-1.8 | 0.1-0.78 | 0.1-0.78 |
Distance between end of shaft to bench table | mm | <710 | <710 | <750 | <750 | <800(1250) | <800(1250) |
Stroke of table | mm | 300 | 300 | 300 | 300 | 300 | 300 |
Table size | mm | 400 x 550 | 400 x 550 | 480 x 560 | 480 x 560 | 550 x 650 | 550 x 650 |
Coolant pump | kw | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
Capacity of coolant pump | L/min | 25 | 25 | 25 | 25 | 25 | 25 |
Overall size | mm | 110 x 80 x 233 | 110 x 80 x 233 | 120 x 80 x 255 | 110 x 90 x 255 | 140 x 96 x 280 | 140 x 96 x 280 |
Net weight | kg | 960 | 1000 | 1200 | 1250 | 2500 | 2500 |
driller
