the Hot Sale and Low Cost China Radial Drilling Machine Z3032 of China of SMAC
- shanghai.china
- T/T L/C D/P D/A
You May Like
-
the Hot Sale and Low Price New and Approved Upright Drilling Machine UDM50 of China of SMAC
-
Driller
-
Radial Drilling Machine/drilling Machine/drill Machine RD3207(3207P/3208/4008/3209/3210/4010/3213)
-
Drilling & Milling Machine/drilling Machine/milling Machine
-
the Hot Sale and Low Cost China New Multi-spindles Drilling Machine RD5016 of SMAC of China
-
the Hot Sale and Low Cost High Precision Drilling Machine RD6320 of China of SMAC
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | SMAC | |
| Model Number | Z3032*9 | Voltage | 380V | |
| Power(W) | 1.5kw | Dimension(L*W*H) | 1320*600*1900mm | |
| Weight | 800kg | Certification | CE;ISO |
Product Description

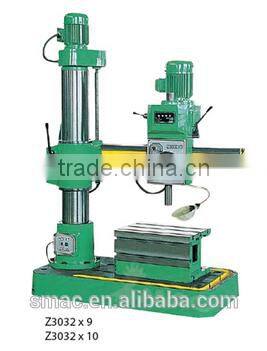

china radial drilling machine Z3032
china radial drilling machine Z3032
Specifications
1. Hydraulic clamping.
2. Hydraulic transmission.
3. Hydraulic preselection.
4. Electrical machinery double protection
Product Descriptio
With antisticlooking and its general arrangement is very harmonized.
With mechanical gear change, convenient to operate.
With comatic automatic ascent and descent cranking bar and production efficciency is high With confident construction, high precision and durable in use.
china radial drilling machine Z3032
| SpecificationModel | 15170 | 15171 | 15172 | 15173 | 15174 | 15175 |
| Z3032 x 9 Z3032 x 10 | ZQ3035 x 10 | ZQ3040 x 10 | ZQ3040 x 13 | ZQ3050 x 13 | ZQ3050 x 16 | |
| Max. drilling dia. (mm) | 32 | 35 | 40, 35 | 40, 35 | 50 | 50 |
| Spindle taper | MT4 | MT4 | MT4 | MT4 | 5# | 5# |
| Spindle speeds/steps | 108-1000/6 | 75-1200/6 | 75-1220 | 75-1220 | 80, 135, 240, 350 ,590, 1100 | |
| Distance from spindle center to column surface (mm) | 780-220 | 1000-300 | 1000-300 | 1300-300 | 1300-360 | 1600-360 |
| Distance from spindle center to table surface (mm) | 980-220 | 1000-260 | 1000-260 | 1000-260 | 1050-260 | 1050-260 |
| Spindle travel (mm) | 120 | 180 | 200 | 200 | 200 | 200 |
| Range of spindle feeds (mm) | Optional | 0.10-0.32 | 0.10-0.32 | 0.10-0.32 | 0.10-0.32 | 0.10-0.32 |
| Overall dimensions (mm) | 1320 x 600 x 1900 | 1450 x 700 x 2050 | 1500 x 705 x 2020 | 1700 x 705 x 2120 | 1950 x 810 x 2450 | 2170 x 950 x 2450 |
| Motor (kw) | 0.85/1.5 | 1.1/2.2 | 2.2/0.75 | 2.2/1.1 | 4/1.5 | 4/1.5 |
| N.W. (kg) | 800 | 1100 | 1530 | 2200 | 2700 | 320 |
china radial drilling machine Z3032*9
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to Almaco Machine Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulic press brake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
We are looking forward to bulding sincere and long-term business relationship with you
