Engineering non woven needle geotextile fabric price from Chinese supplier

FOB Price

USD $0.94 - $0.97 / Square Meter

9280 Square Meters(Min.Order)

Supply Ability 30000 Square Meter / Square Meters per Month
Port Qingdao

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Hongxiang
Model Number	SNG500		Geotextile Type	Non-Woven Geotextiles

Product Description

Short fiber Needle Punched Nonwoven Geotextile Description

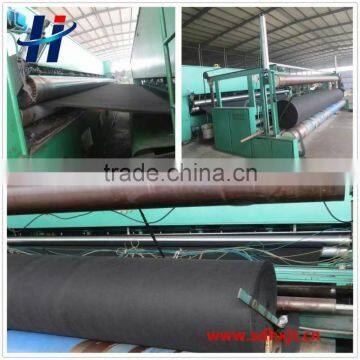

Short fiber needle punched non-woven geotextile can be made of polyester or polypropylene in random directions and punched together by needles during the manufacturing process.The non-woven design of the material provides a higher rate of flow through,making it easier for water pass through the material.this products are commonly used to separate layers like clay and drainage to protect liner from damage.

specification

Short fiber Needle Punched Nonwoven Geotextile Specification

1.Material: 100% original PP /PET staple fiber.

2.Width: 1m~6m, lengt is 50m or at your request.

3.Unit weight: 100g/m2~1000g/m2.

4. Color: white ,black , grey or at your requst.

Application

Short fiber Needle Punched Nonwoven Geotextile Application

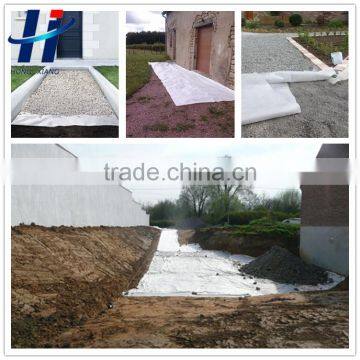

PP nonwoven geotextile currently support many civil engineering applications incliding roads, airfields, railroads, embankments, retaining structures, reservoirs, canals, dams, bank protection, coastal engineering . Usually geotextiles are placed at the tension surface to strengthen the soil. Geotextiles are also used for sand dune armoring to protect upland coastal property from storm surge, wave action and flooding.

Geotextile can inprove soil strength at a lower cost than conventional soil nailing. In addation, geotextile allow planting on steep slopes, futher securing the slope.

property

Short fiber Needle Punched Nonwoven Geotextile Property

1.Separation Geotextiles will prevent two soil layers of different particle sizes from mixing with each other , as is illustrated the image below.

2.Drainage Geotextiles will efficiently collect superfluous water from structures , such as rainwater or surplus water, from the soil and discharge it.

3.Filtration Geotextiles are an ideal interface for reverse filtration in the soil adjacent to the geotextile , in all soils water allowa fine particles to moved . Part of these particles will be halted at the filter interface; some willbe halted within the filter itself while the rest will pass into the drain. The complex needlepunched structure of the geotextile enables the retention of fine particles without reducing the permeability of drain.

4.Reinforcement Heavy geotextile can be used to reinforce earth structures by means of fill materials . THanks to their high soil fabric friction coefficient and high tensile strength, they are an ideal reinforcement solution.

5.Protection Geotextile are an ideal protection from erosion of earth embankments by wave action, currents or repeated drawdown. A layer of geotextile can be placed so as prevent leaching of fine material. They can be used for rock beaching or as mattress structure.they can even easily be placed under water.
