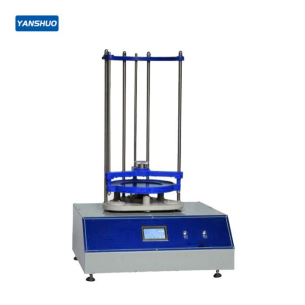

YS030G Geotextile Effective Pore Size Tester
- 0 Unit / Units per Month
- T/T
You May Like
Product Description
【Scope of Application】:
Used to determine the effective pore size of all types of geotextile products.
【Compliant Standards】:
GB/T 14799, ASTM D4751, JTG E50 T1144, SL/T 235, etc.
【Product Features】:
1. Equipped with a servo motor and drive system, allowing adjustable vibration frequency.
2. Heavy-duty base design minimizes movement and reduces operational noise.
3. Stainless steel sieve mesh.
4. Color touchscreen display and control with Chinese/English interfaces and menu-based operation.
【Technical Parameters】:
1. Sieve diameter: 200 mm
2. Sieve height: 40 mm
3. Horizontal shaking frequency: 220±10 times/min
4. Sieve rotation radius: 12±1 mm
5. Vertical vibration frequency: 150±10 times/min
6. Amplitude: 10±2 mm
7. Preset time: 0–99999.9 s
8. Power supply: AC 220 V, 50 Hz, 1000 W
9. Dimensions: 600×600×1100 mm (L×W×H)
10. Weight: 130 kg
【Principle】:
The geotextile specimen is used as a sieve. Standard particles of known diameter are placed on the geotextile and vibrated. The diameter of particles passing through the geotextile is measured to determine the effective pore size of the product.
