Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WB80 | Theory | Centrifugal Pump | |
| Structure | Diaphragm Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Cryogenic |
Product Description
WB80 Sewage Pumps
| ITEM | WB80 |
| Outlet Size(mm) | 80 |
| Inlet Size(mm) | 80 |
| Speed(rmp) | 3600 |
| Displacement Q.max(m3/h) | 50 |
| Lift H.max(m) | 20 |
| Suction(m) | 7 |
| Engine Model | 168F |

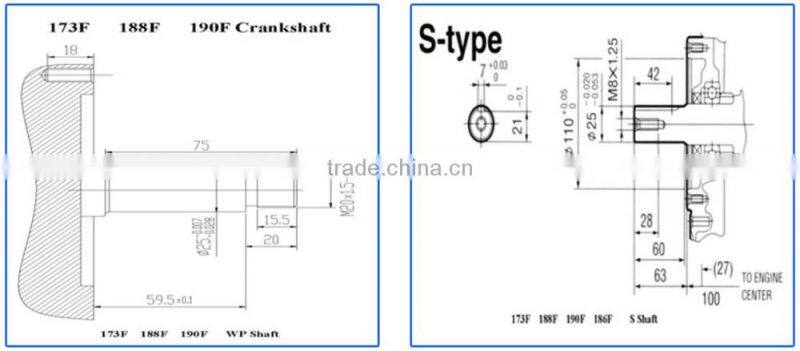

Engine Crankshaft Data Request

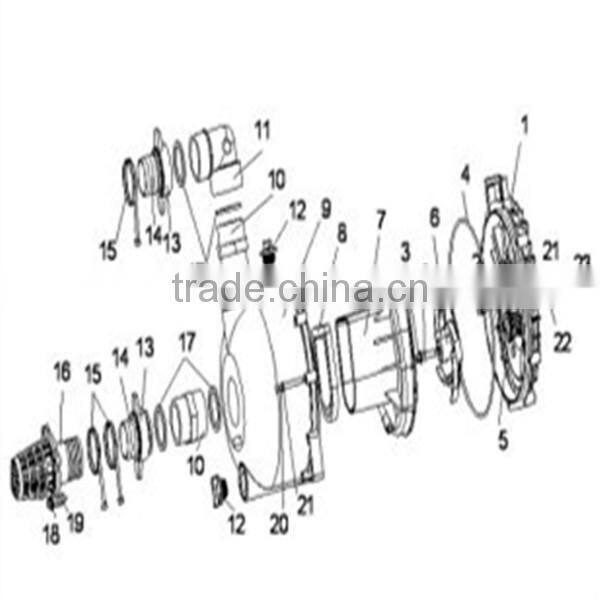

| Erial Number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Rubber ring Φ12×Φ6×3.1 | 4 |
| 3 | Bolt M8×3.5 | 4 |
| 4 | pump sealing ring | 1 |
| 5 | Mechanical seal/ceramic | 1 |
| 6 | Impeller | 1 |
| 7 | Eddy shell | 1 |
| 8 | Eddy shell sealing ring | 1 |
| 9 | Water pump body | 1 |
| 10 | Inlet joint | 2 |
| 11 | The water outlet joint | 1 |
| 12 | Threaded plug gasket | 2 |
| 13 | Pipe joint connecting nut | 2 |
| 14 | Pipe joint | 2 |
| 15 | Clamp | 3 |
| 16 | Filter cover | 1 |
| 17 | Pipe joint sealing gasket | 2 |
| 18 | Bolt M6×20 | 2 |
| 19 | Nut M5 | 2 |
| 20 | Bolt M6×65 | 10 |
| 21 | Shim | 20 |
| 22 | Spring pad | 10 |
| 23 | Nut M5 | 10 |
Accesseries Installation Diagram

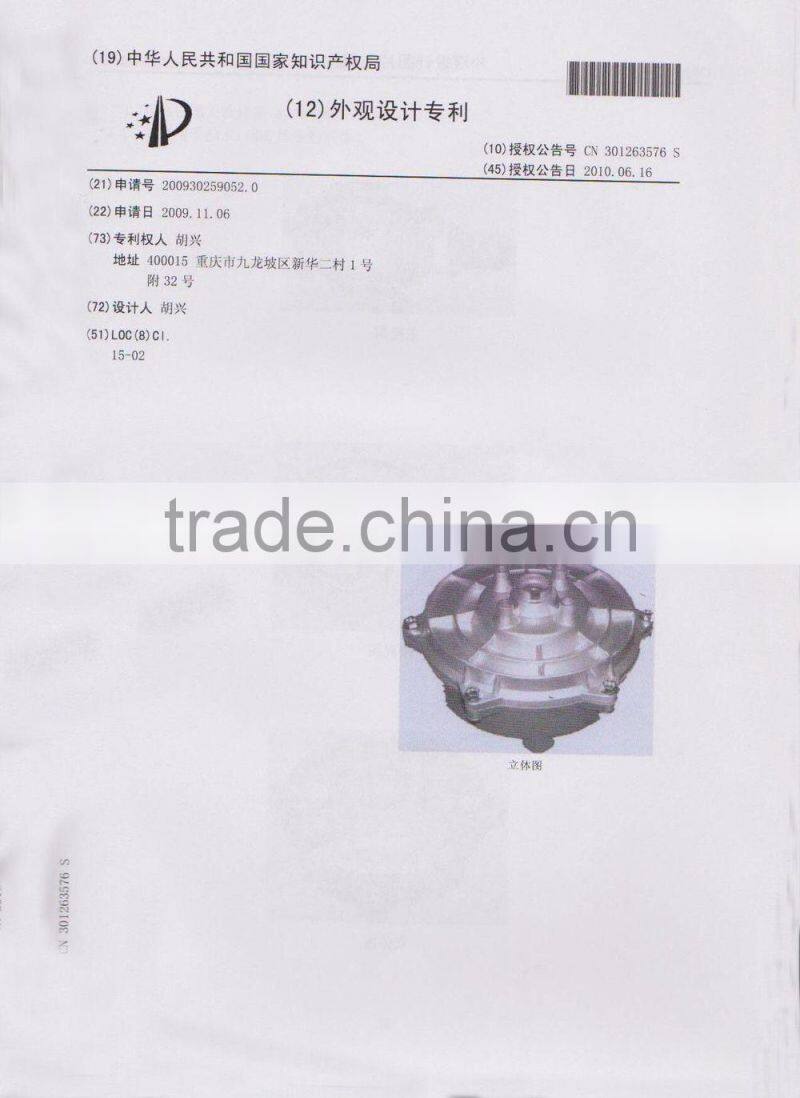

Our company's products are qulity assured,here's our present certifications.
