Industry Usage Sewage Pumps of Gasoline Engine Power Sprayer Pump
- Shanghai or Chongqing Port
- T/T
You May Like
-
JUANYONG Brand 4 Inch Solid Waste Pump
-
3 Inch Sewage Pump With Electric Water Pumps
-
Industry Usage Sewage Pumps
-
1kw-5.5kw Power and Standard Standard or Nonstandard Agricultural Consumptions Water Pump
-
Large Power Electric Water Pumping System for Sewage for Slurry Pump Semi-Open Impeller
-
"juanyong" Brand 3 Inch Sewage Water Pump Well Pump With Outdoor Fountain
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WB100 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Sewage |
Product Description
ITEM | WB100 |
Outlet Size(mm) | 100 |
Inlet Size(mm) | 100 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 68 |
Lift H.max(m) | 20 |
Suction(m) | 5 |
Engine Model | 190F |

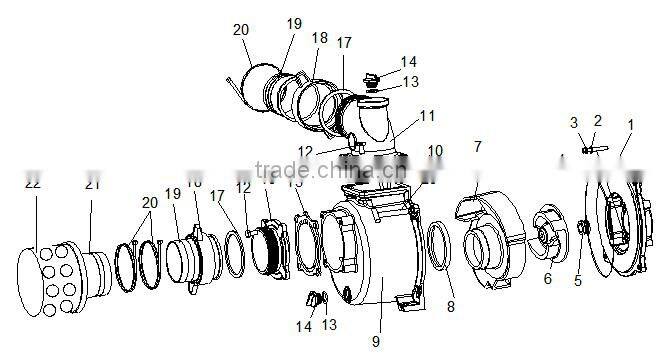

Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 5 |
3 | Bolt M8×45 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | Bolt M10×30 | 8 |
13 | Rubber plug gasket | 2 |
14 | Threaded plug pump | 2 |
15 | Inlet sealing gasket | 1 |
16 | Inlet joint | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Pipe joint connecting nut | 2 |
19 | Pipe joint | 2 |
20 | Clamp | 3 |
21 | The filtering orifices | 1 |
22 | Filter cover | 1 |
23 | T bolt | 4 |
Accesseries Installation Diagram
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
