Home > Products > Sewage Water Pump > 2015 JUANYONG Brand Condensate Pump
2015 JUANYONG Brand Condensate Pump
US$ 80 - 120
/ Set
10 Sets(Min. Order)
- Shanghai or Chongqing Port
- T/T
You May Like
-
In China 3 Inch Sewage Pump With Machines Used Sewage Pumps Purchase
-
"JUANYONG" Brand 3 Inch Sewage Water Pump With Diesel Engine One Cylinder
-
Sewage Water Pump With Pump Price
-
2016 High Efficient Self Priming Sewage Pumps With Aluminum Made in China for Industry Usage
-
Single-stage Pump Structure and Irrigation,farm,sewage, Usage Centrifugal Sewage Pump
-
Sewage and Clean Heavy Duty Water Pumps Electrically Operated.
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WB80 | Theory | Centrifugal Pump | |
| Structure | Multistage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Sewage |
Product Description
Introduction of 3 Inch Sewage Pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of sewage pump is designed for iindustry usage with 168F engine, which can work efficiently and stably.
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Specifications of 3 Inch Sewage Pump
| Item | WB80 |
| Inlet Size(mm) | 80 |
| Outlet Size(mm) | 80 |
| Speed(rpm) | 3600 |
Displacement Q.max(m3 /h) | 50 |
Lift H.max(m) | 20 |
| Suction(m) | 7 |
| Engine Model | 168F |
Performance Curve
Water Pump Part List
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

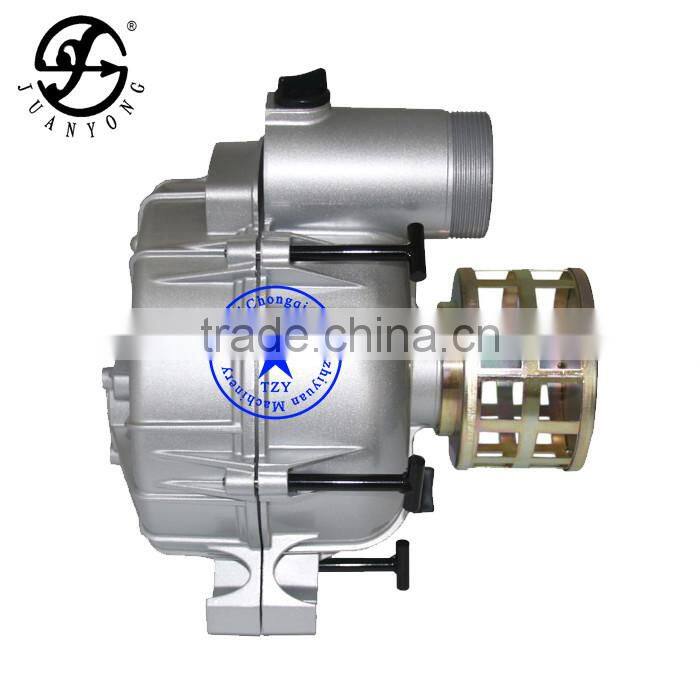

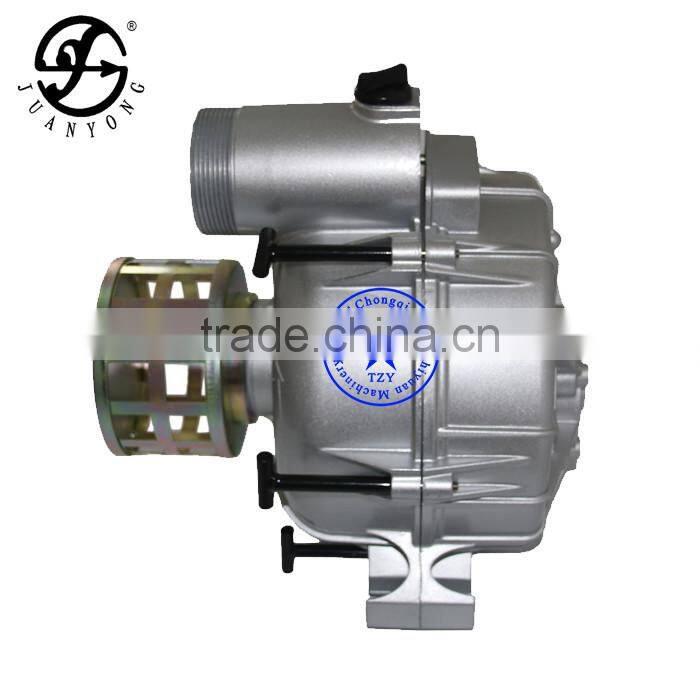

Image of Water Pump
Certificate of Tianzhiyuan Water Pump
FAQ
1.What’s your MOQ?
The sample order is OK.
2.What’s your payment terms?
T/T,L/C,D/A,D/P,etc.
3.What is the delivery time?
Standard sample 1 day.
