Air Heat Exchange Ventilation
- Xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | AIR-ERV | |
| Model Number | KRV | Type | Ventilation |
Product Description
Specifications
air heat recovery ventilation1.CE certification
2.High efficiency and low maintance cost
3.Exchange the air and non-mixed
Product Description
Features:
1.Indoor and outdoor two-ways ventilation, equivalent exchanger of fresh air;
2.Low noise, corrosion and high tempreture resistant;
3.Paper core:high moisture-permeating rate, good air-tightness, tearing-resistance and aging-resistance
4.High heat recovery efficiency;
5.Sealed process stucture,easy to contral and maintain.
Use scope: home,meeting room,office,industry, hospitail,school,bus station,supermarket,shopping mall,club,hotal and so on.
Technology parameter:
Model | Air vol (m3/h) | Residual pressure(Pa) | Power (W) | Summer | Winter | RE.weight(kg) | ||||||||||||
Temperature efficiency(%) | Enthalpy efficiency(%) | Temperature efficiency(%) | Enthalpy efficiency(%) | |||||||||||||||
High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | High | Low |
| ||||
KRV-02 DT(P) | 200 | 150 | 75 | 65 |
| 80 | 58 | 75 | 77 | 58 | 62 | 75 | 77 | 69 | 72 | 25 | ||
KRV-03 DT | 300 | 250 | 85 | 75 | 107 | 78 | 76 | 77 | 56 | 60 | 76 | 77 | 67 | 70 |
| 32 | ||
KRV-04 DT | 400 | 350 | 90 | 80 | 142 | 121 | 76 | 77 | 54 | 58 | 76 | 77 | 66 | 68 |
| 38 | ||
KRV-05 DT | 500 | 450 | 110 | 95 | 173 | 130 | 70 | 73 | 50 | 55 | 70 | 73 | 63 | 67 | 47 | |||
KRV-06 DT | 600 | 500 | 100 | 90 | 190 | 162 | 70 | 72 | 50 | 53 | 70 | 72 | 61 | 64 | 48 | |||

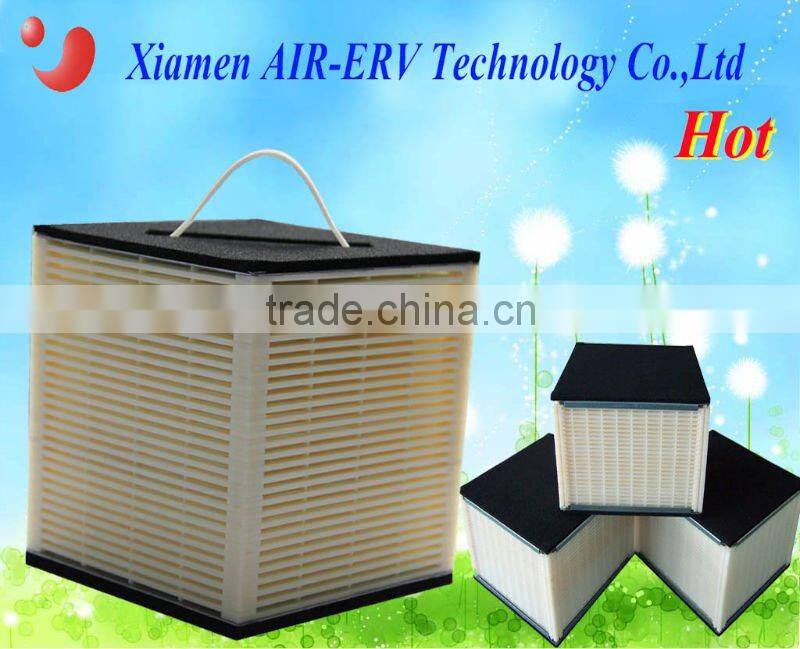

Heat exchanger core
Design Draft
