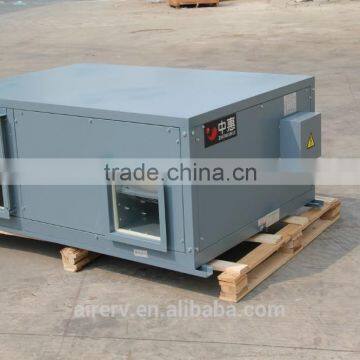

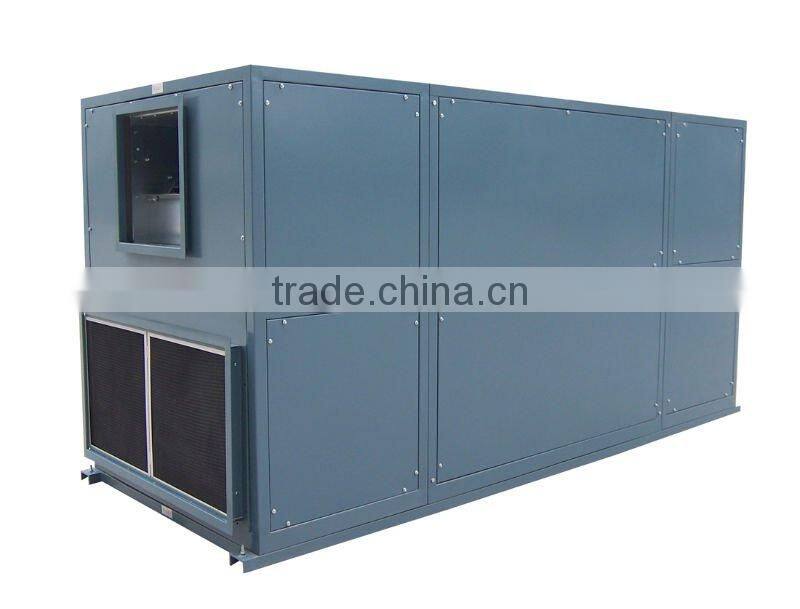

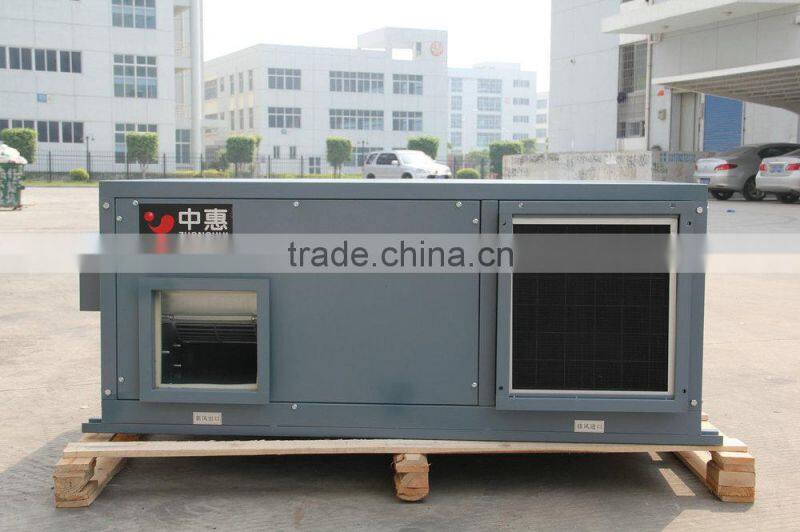

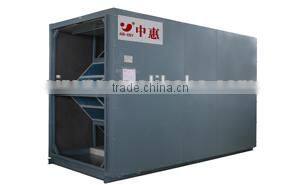

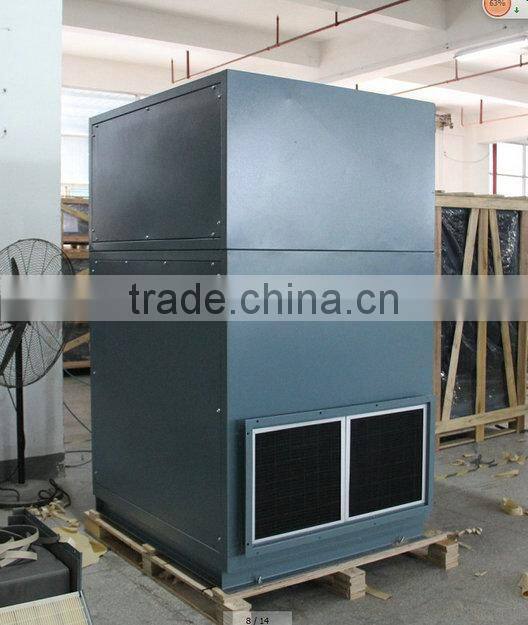

Energy Saving Heat Exchanger/ Heat Recovery Ventilator/HRV
- Xiamen
- T/T Credit Card
You May Like
-
Air-ERV Head-Power Domestic Heat Recovery Recuperator Ventilation
-
High Static Pressure Air Recuperator Heat Exchanger
-
Heat Recovery Vantilation With Total Paper Heat Exchanger
-
CE Certificated Heat Exchanger Equipment
-
Roof Mount Ventilator Heat Exchanger
-
CE Certified Erv Energy Recovery Ventilator Air Handling Unit
Product Details
| Condition | New | Place of Origin | Fujian, China | |
| Brand Name | Air-ERV | Model Number | HRA | |
| Structure | Plate Heat Exchanger | Voltage | 220V | |
| Weight | 142 | Dimension(L*W*H) | 1350X940X500 | |
| Warranty | 1 year | After-sales Service Provided | Overseas service center available | |
| Certification | CE |
Product Description
We supply energy saving heat exchanger/ heat recovery ventilator/HRV
Would you like to purchase an energy saving heat exchanger/ heat recovery ventilator/HRV?
Have a look at our heat recovery exchanger ,to see what features and advantage we have.
1.Energy Saving
Crossflow energy recovery unit, use patent technology, improved the energy recovery efficiency, reduced the air flow resistance
2.Application Range
Air flow 4000~16000m3/h, suitable for meeting room, office, machine room and industrial occasions which contains stink, dust, bacteria, viruses.
3.Convenient Installation
Unit ground installation, placed in the base of the smooth, Tuyere is diversiform, can according to the customer request design, ease of installation.
4.Low Noise
Optimized structure design, used sound-absorbing material and nonmetallic impeller, guaranteed the good static sound effect.
5.Complete Function
Two-way air exchange, air purification, energy recovery and so on, easy to control.
************************************************************************************************************
If you are insteresting in our energy saving heat exchanger/ heat recovery ventilator/HRV ,click here to contact with Jenny Yang.
************************************************************************************************************
Product Model:
Model | Air Volume (m3/h) | Static Pressure (Pa) | Volts/Hz | Input Power (W) | Temperature Efficiency(%) | Noise [dB(A)] | Dimension (mm) | Re. Weight (kg) |
HRV-40L | 4000 | 210 | 380V-3-50Hz | 2400 | 75 | 60 | 840×1200×1742 | 332 |
HRV-50L | 5000 | 210 | 380V-3-50Hz | 4150 | 75 | 62 | 1030×1200×1778 | 408 |
HRV-60L | 6000 | 230 | 380V-3-50Hz | 4158 | 76 | 65 | 910×1400×1995 | 483 |
HRV-80L | 8000 | 230 | 380V-3-50Hz | 5080 | 76 | 65 | 1130×1400×1995 | 541 |
HRV-100L | 10000 | 230 | 380V-3-50Hz | 6900 | 77 | 67 | 1450×1540×2069 | 745 |
HRV-120L | 12000 | 230 | 380V-3-50Hz | 8310 | 77 | 65 | 1700×1400×1995 | 842 |
HRV-160L | 16000 | 230 | 380V-3-50Hz | 10160 | 78 | 66 | 2130×1400×1995 | 958 |
HRV Series Heat exchanger wind Ventilation built-in highly efficient heat exchanger, so that the return air and supply air can realize sensible heat exchange and latent heat exchanger during the air flow on the plate, not only provides a comfortable temperature, but also recover and save the energy.
************************************************************************************************************
If you are insteresting in our energy saving heat exchanger/ heat recovery ventilator/HRV ,click here to contact with Jenny Yang.
************************************************************************************************************
Plate Heat Exchanger:Aluminum ERA heat exchanger core
| Brand | AIR-ERV |
Production Capacity | 10000 Piece/Pieces per Month |
| Material | Normal Aluminum,Blue coating Aluminum,Epoxy coating Aluminum,steelness foil |
| Terms | FOB XIAMEN |
| Place of Origin | China |
| Feature | ECO-friendly |
| Payment terms | 30% deposit before we make the production, 70% balance paid after we finished the order.Sample 100% T/T |
| Order delivery | 25-30days after receiving 30% deposit |
| Packing | 1pcs/polybag,50pcs/inner box,1000 or 500 pcs/out carton |
| Shipment means | by sea, by air, by express etc. |
1. AIR-ERV can supply OEM service for customers.
2. Produce ERV/HRV, heat exchanger according to customer's special demands.
3. Supply spare parts according to order quantity.
4. General testing and operational test carried out for every units before delivery.
5. Long warranty period.
************************************************************************************************************
If you are insteresting in our energy saving heat exchanger/ heat recovery ventilator/HRV ,click here to contact with Jenny Yang.
************************************************************************************************************
Xiamen AIR-ERV Technology Co.,Ltd is a national high-tech enterprise established in 1996. Xiamen AIR-ERV is a company comprising of R & D, manufacturing, sales and service. Our skeleton members are comprised of experts who were working on heat transfer and energy recovery technology and application. Also we have a lot of experienced manufacturing worker. We are a good example of production-study-R&D. We mainly focus on the industrial system optimization (heat recovery) and environmental protection based on our continuous technology innovation.
AIR-ERV partner
AIR-ERV cooperate with world famous brand or offer OEM service including Media,Shenling,Daikin, etc.
Air-ERV Certificate:
Who Need HRV?
Every home (new and old) needs ventilation to bring in fresh air, to remove stale air, and provide moisture control.
Why HRV?
HRV introduces fresh air to a building and improves climate control, whilst promoting efficient energy use.
While opening a window does provide ventilation, the building's heat and humidity will then be lost in the winter and gained in the summer, both of which are undesirable for the indoor climate and for energy efficiency, since the building's HVAC systems must compensate.
Use our energy saving heat exchanger/ heat recovery ventilator/HRV to bring you the most efficiency energy save.
