Home > Products > K-Series Energy Recovery Ventilator > KRV Energy Recovery Paper Ventilation
KRV Energy Recovery Paper Ventilation
- Xiamen port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | AIR-ERV | |
| Model Number | KRV-160W |
Product Description
Specifications
1.Paper energy recovery ventilation2.Air volume:16000m3/h
3.Static pressure:220Pa
4.Temperature Efficiency:75%
KRV energy recovery paper ventilation
Product Description

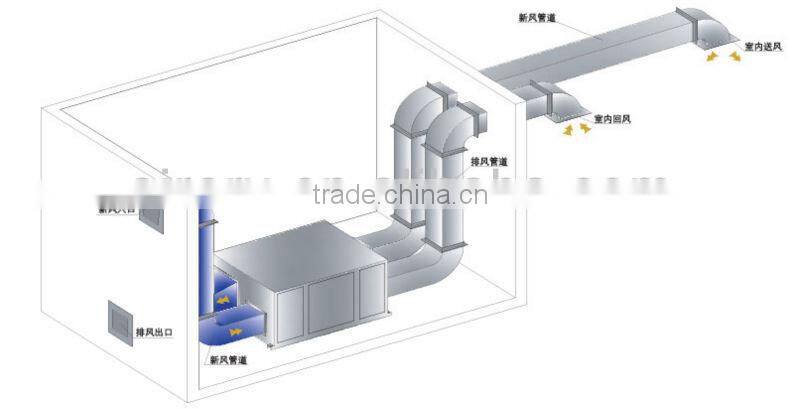

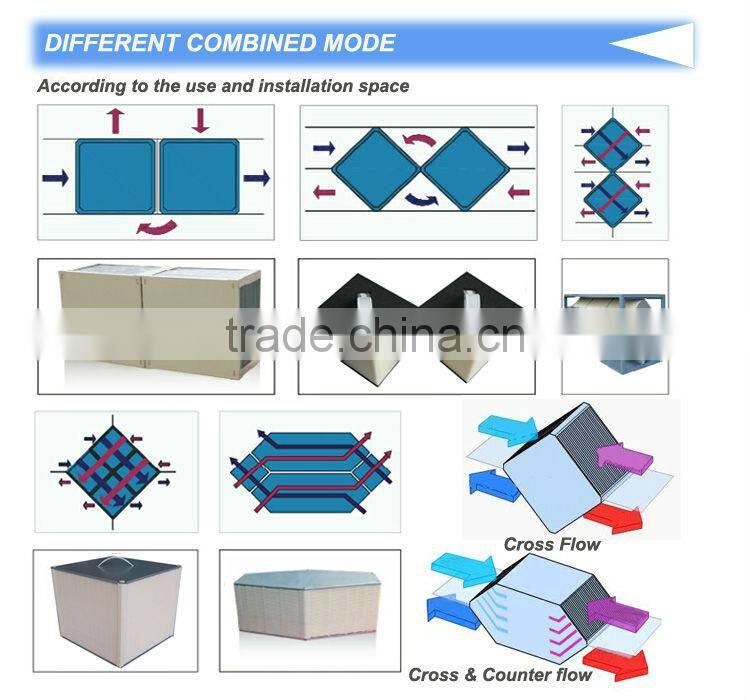

KRV series stand for energy recovery paper ventilation, the heat exchanger core is cross flow paper core, the major function is remove the exhaust air(stable indoor air) and replace it with fresh outdoor air, improve the air quality.
Material:Paint Cold-rolled sheet
Core: Paper core
Features:
1.Indoor and outdoor two-ways ventilation, equivalent exchanger of fresh air;
2.Low noise desigh, corrosion and high tempreture resistant;
3.Paper core:high moisture-permeating rate, good air-tightness, tearing-resistance and aging-resistance
4.High heat recovery efficiency;
5.Sealed process stucture,easy to contral and maintain.
Temperature efficiency: 70-80%
Use scope:home,meeting room,office,industry, hospitail,school,bus station,supermarket,shopping mall,club,hotal and so on.
Parameter of Horizontal Type:
Model | Air Volume (m3/h) | Static Pressure (Pa) | Rated Voltage | Input Power (W) | Summer | Winter | Noise [dB(A)] | Dimension (mm) | Re. weight (kg) | ||
Temperature Efficiency (%) | Enthalpy Efficiency(%) | Temperature Efficiency(%) | Enthalpy Efficiency(%) | ||||||||
KRV-80W | 8000 | 270 | 380V/50Hz | 4800 | 74 | 53 | 74 | 63 | 66 | 2240×2340×1080 | 603 |
KRV-100W | 10000 | 270 | 380V/50Hz | 7900 | 77 | 51 | 77 | 68 | 67 | 2240×1980×1590 | 761 |
KRV-120W | 12000 | 270 | 380V/50Hz | 7900 | 72 | 57 | 72 | 64 | 67 | 2240×2340×1590 | 903 |
KRV-160W | 16000 | 220 | 380V/50Hz | 9680 | 75 | 56 | 75 | 68 | 68 | 2240×2240×2060 | 1080 |
KRV-200W | 20000 | 250 | 380V/50Hz | 12900 | 77 | 58 | 77 | 69 | 69 | 2400×2240×2560 | 1365 |
WELcome to visit Paper energy recovery ventilation:
