Home > Products > K-Series Energy Recovery Ventilator > HVAC system ceiling heat recovery

HVAC system ceiling heat recovery

FOB Price

USD $600 - $800 / Set

1 Set(Min.Order)

Port Xiamen port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Air Conditioner Parts, Air Conditioning Fitting	Application	Home
Certification	Other, CE, CE/RoHs	Place of Origin	Fujian, China
Brand Name	AIR-ERV	Model Number	KRV-08DT

Product Description

Specifications

1.HVAC ceil heat recovery
2.Air volume:800m3/h
3.Static pressure:120Pa
4.Heat recovery efficiency:75%

HVAC system ceiling heat recovery

Product description:

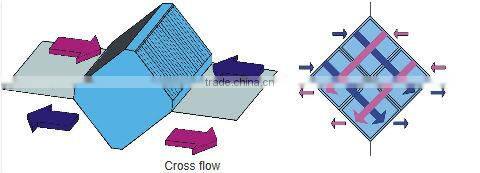

KRV series stand for fresh air ceiling heat recovery, the heat exchanger core is cross flow paper core, the major function is remove the exhaust air(stable indoor air) and replace it with fresh outdoor air, improve the air quality. It is suitable for installation in Home, office, meeting room. Not only exchanger fresh air, but also save energy.

Features:

1.Indoor and outdoor two-ways ventilation, equivalent exchanger of fresh air;

2.Low noise, corrosion and high tempreture resistant;

3.Paper core:high moisture-permeating rate, good air-tightness, tearing-resistance and aging-resistance

4.High heat recovery efficiency;

5.Sealed process stucture,easy to contral and maintain

Main parameter:

Model	Air Volume (m3/h)		Static Pressure (Pa)		Rated Voltage	Input Power (W)		Summer				Winter				Noise [dB(A)]		Dimension (mm)	Re. weight (kg)
	Air Volume (m3/h)		Static Pressure (Pa)			Input Power (W)		TemperatureEfficiency (%)		Enthalpy Efficiency (%)		Temperature Efficiency (%)		Enthalpy Efficiency (%)		Noise [dB(A)]
	High	Low	High	Low		High	Low	High	Low	High	Low	High	Low	High	Low	High	Low
KRV-05 DT	500	450	110	95	220V/50Hz	173	130	70	73	50	55	70	73	63	67	35	32	820×900×268	47
KRV-06 DT	600	500	100	90	220V/50Hz	190	162	70	72	50	53	70	72	61	64	35	33	830×910×288	48
KRV-08 DT	800	700	120	100	220V/50Hz	320	302	73	75	50	55	73	75	64	69	37	35	1110×880×388	73
KRV-10 DT	1000	900	100	80	220V/50Hz	410	360	74	77	54	58	74	77	66	70	38	36	1110×1135×388	92

Overview:
