Residential Use Energy Recovery Ventilation for Heat Recovery
- Xiamen port
- T/T Credit Card
You May Like
-
150--200 M3/H Air To Air All Heating Energy Recovery in Plate Ventilation From Factory Supplying With by Pass
-
Residential Air Energy Recovery Ventilator System
-
Home Appliance Ceil Mounted Energy Recovery Ventilator
-
Air Exchanger With KRV Energy Recovery Ventilator Heat Recovery for Air Recuperator
-
HVAC System Heat Recovery Ventilation
-
Air to Air Ventilation System
Product Details
| Place of Origin | Fujian, China | Brand Name | AIR-ERV | |
| Model Number | KRV-05DT | Type | Evaporator | |
| Application | Heater Parts | Certification | CE |
Product Description
Residential use energy recovery ventilation
Product description:
KRV series stand for energy recovery ventilator, the heat exchanger core is cross flow paper core, the major function is remove the exhaust air(stable indoor air) and replace it with fresh outdoor air, improve the air quality. It is suitable for installation in Home, office, meeting room. Not only exchanger fresh air, but also save energy.
Features:
1.Indoor and outdoor two-ways ventilation, equivalent exchanger of fresh air;
2.Low noise, corrosion and high tempreture resistant;

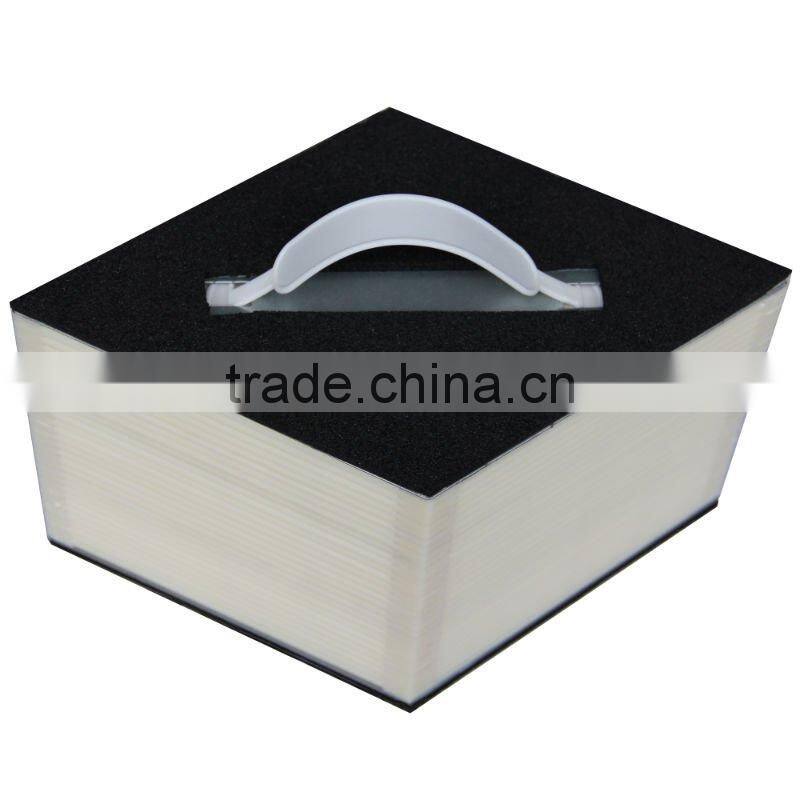

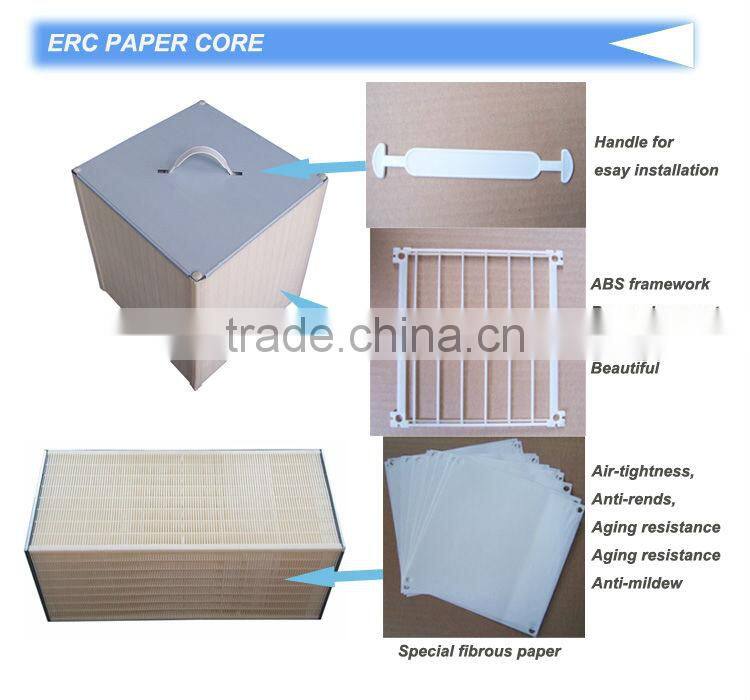

3.Paper core:high moisture-permeating rate, good air-tightness, tearing-resistance and aging-resistance
4.High heat recovery efficiency;
5.Sealed process stucture,easy to contral and maintain
Main parameter:
Model | Air Volume (m3/h) | Static Pressure (Pa) | Rated Voltage | Input Power (W) | Summer | Winter | Noise | Dimension (mm) | Re. weight (kg) | ||||||||||
TemperatureEfficiency (%) | Enthalpy Efficiency (%) | Temperature Efficiency (%) | Enthalpy Efficiency (%) | ||||||||||||||||
High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | ||||
KRV-02DT | 200 | 150 | 75 | 65 | 220V/50Hz | 80 | 58 | 75 | 77 | 58 | 62 | 75 | 77 | 69 | 72 | 30 | 27 | 665×580×268 | 26 |
KRV-03 DT | 300 | 250 | 85 | 75 | 220V/50Hz | 107 | 78 | 76 | 77 | 56 | 60 | 76 | 77 | 67 | 70 | 32 | 29 | 745×600×268 | 32 |
KRV-04 DT | 400 | 350 | 90 | 80 | 220V/50Hz | 142 | 121 | 76 | 77 | 54 | 58 | 76 | 77 | 66 | 68 | 34 | 30 | 745×800×268 | 38 |
KRV-05 DT | 500 | 450 | 110 | 95 | 220V/50Hz | 173 | 130 | 70 | 73 | 50 | 55 | 70 | 73 | 63 | 67 | 35 | 32 | 820×900×268 | 47 |
Overview:

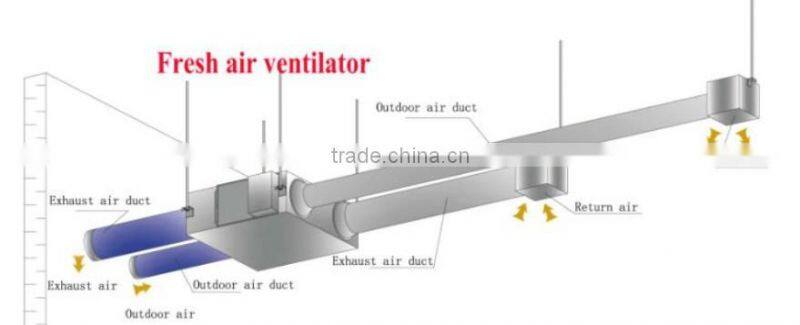

Ceiling Installation and save space:
WELcome to visit Residential energy recovery Ventilation:
