Home > Products > Distribution box > WS-MCU Metal Distribution Box

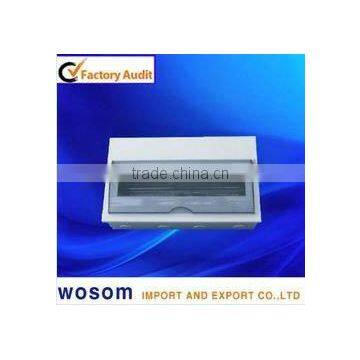

WS-MCU Metal Distribution Box
Negotiable
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- xi'an
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WOSOM | |
| Model Number | WS-MCU |
Product Description
Specifications
WS-MCU Metal Distribution Box1.0mm sheet cold rolled stellbothon body and base
with transparent cover made by PC material
Specifications
WS-MCU Metal Distribution Box
1.0mm sheet cold rolled stellbothon body and base
with transparent cover made by PC material
WS-MCU Metal Distribution Box
Application
1.1.0mm sheetcold rolled steel both on body and base
2.Textured surface finish by power coated
3.With transparent cover made by PC material
4.With terminal link and rail fixed inside the box
5.With fiexible wires or cabies and busbar wupplied
6.With bolt and nuts supplied for earth connecting
7.Fitted with isolater Main Switch or RCCB and MCBs.
Specifications
| MODEL | SPECIFICATIONS | DESCRIPTION |
| WSMCU-4 | 4WAY | Main Switch or RCCN and 2 outgoing ways |
| WSMCU-6 | 6WAY | Main Switch or RCCN and 4 outgoing ways |
| WSMCU-8 | 8WAY | Main Switch or RCCN and 6 outgoing ways |
| WSMCU-10 | 10WAY | Main Switch or RCCN and 8outgoing ways |
| WSMCU-10 | 14WAY | Main Switch or RCCN and 10 outgoing ways |
Dimensions(mm)
| MODEL | L1 | L2 | L3 | W1 | W2 | W3 | H1 | H2 |
| WSMCU-4 | 127 | 120 | 76 | 185 | 178 | 128 | 101 | 80 |
| WSMCU-6 | 163 | 156 | 100 | 185 | 178 | 128 | 101 | 80 |
| WSMCU-8 | 199 | 192 | 140 | 185 | 178 | 128 | 101 | 80 |
| WSMCU-10 | 235 | 228 | 175 | 185 | 178 | 128 | 101 | 80 |
| WSMCU-14 | 307 | 300 | 250 | 185 | 178 | 128 | 101 | 80 |
