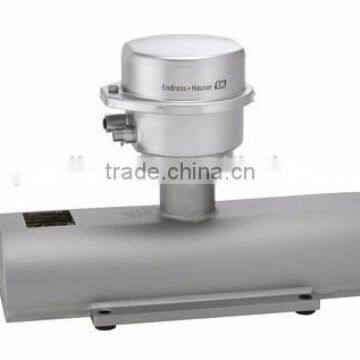

Proline Promass A 100 Coriolis flowmeter
The single-tube flowmeter for smallest flow quantities with an ultra-compact transmitter
Product Overview
Promass A is known for its highly accurate measurement of small quantities of liquids and gases for high pressure and low pressure. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Promass A 100 is the preferred choice for system integrators, skid builders and equipment manufacturers. Available with an ultra-compact stainless steel hygienic housing it can be placed even into the most compact rigs.
Benefits
Highest process safety – self-drainable measuring tube design
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on the smallest footprint
Time-saving local operation without additional software and hardware – integrated web server
Integrated verification – Heartbeat Technology™
Field of application
Measuring principle operates independently of physical fluid properties such as viscosity or density
Measuring accurately smallest quantities of liquids and gases for continuous process control.
Device properties
Nominal diameter: DN 1 to 4 (1/24 to 1/8")
Process pressure up to 400 bar (5800 psi)
Medium temperature up to +200 °C (+392 °F)
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available
Technical information
Measuring Principle | Coriolis | |
Product headline | The single-tube flowmeter for smallest flow quantities with an ultra-compact transmitter. Measuring accurately smallest quantities of liquids and gases for continuous process control. | |
Sensor features | Highest process safety – self-drainable measuring tube design. Fewer process measuring points - multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. Nominal diameter: DN 1 to 4 (¹⁄24 to ¹⁄8"). Process pressure up to 400 bar (5800 psi). | |
Transmitter features | Space-saving transmitter - full functionality on smallest footprint. Time-saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology™. Robust, ultra-compact transmitter housing. High ingress protection: IP69K. | |
Nominal diameter range | DN 1 to 4 (1⁄24 to 1⁄8") | |
Wetted materials | Measuring tube: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022); 1.4404 (316/316L) | |
Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration | |
Max. measured error | Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.5 % Density (liquid): ±0.0005 g/cm³ | |
Measuring range | 0 to 450 kg/h (0 to 16.5 lb/min) | |
Max. process pressure | PN 40, Class 300, 20K, 400 bar (5800 psi) | |
Medium temperature range | –50 to +200 °C (–58 to +392 °F) | |
Ambient temperature range | Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) | |
Sensor housing material | 1.4301 (304), corrosion resistant | |
Transmitter housing material | Compact: AlSi10Mg, coated Compact/ultra-compact: 1.4301 (304), 1.4404 (316L) | |
Degree of protection | Standard: IP66/67, type 4X enclosure Option: IP69K | |
Display/Operation | 4-line backlit display available (no local operation) Configuration via web browser and operating tools possible | |
Outputs | 4-20 mA HART (active) Pulse/frequency/switch output (passive) | |
Inputs | None | |
Digital communication | HART, Modbus RS485, EtherNet/IP, PROFIBUS DP | |
Power supply | DC 20 to 30 V | |
Hazardous area approvals | ATEX, IECEx, cCSAus | |
Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, CRN, 3A, EHEDG |
