Home > Products > Concrete mixer > js500 concrete mixer

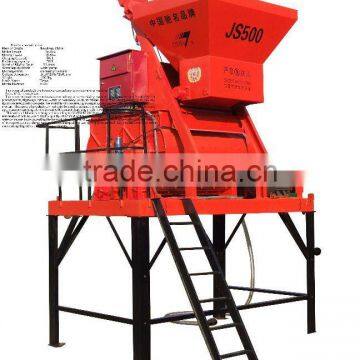

js500 concrete mixer
- qingdao
- T/T D/P D/A PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Tiema | Model Number | js500 | |
| Motor Power | 18.5kw | Mixing Power | 18.5kw | |
| Charging Capacity | 800L | Reclaiming capacity | 500L | |
| Speed of Mixing Drum | 35r/min | Water Supply Mode | water pump | |
| Discharge Way | manual/ pnuematic | Outline Dimension | 3030*2300*2680mm |
Product Description
Specifications
1. twin axis compulsory concrete mixing machine2.discharging height :1.5m(2.7m/3.8m)
3.ISO9001,CE
4.Market:Africa,US
Series JS Concrete Mixer
This series of products are twin axis compulsory concrete mixing machine, which can be used for all kinds of precast plants, highways, bridges, water conservancy, ports, terminals, etc. and construction sectors to mix dry rigid concrete, plastic concrete, the mobility of concrete, lightweight aggregate concrete and every kind of mortar.
This series of products can not only be used as a stand-alone use but also be a mixing console to make up a concrete batching plant with series PL concrete batching machine.
Features
This series of Mixers are designed according to GB/T9142-2000 standards. They have characteristics as reasonable structure, good mixing quality, short mixing time, low energy consumption and little noise etc.
This series of mixers have unloading the form of a high degree of 1.5 m ,2.7 m ,3.8 m with the users concrete means of transport, such as :dump motor vehicles, Dump-dump car, concrete mixer truck, etc. The customers can make a unloading degree by their own requirements.
COMMODITY NAME | Forced concrete mixer | |
MODEL | JS500 | |
SPECIFICATION | 1.discharging height :1.5m(2.7m/3.8m) 2.discharging form: manual operation/ air operated | |
BRAND NAME | Tiema | |
PLACE OF ORIGIN | China | |
MOTOR POWER | 0.75KW | |
MIXING POWER | 18.5KW | |
LIFTING MOTER | 5.5KW | |
CHARGING CAPACITY | 800L | |
DISCHARGING CAPACITY | 560L | |
MAX.PRODUCTIVITY | 25M3/H | |
SPEED OF MIXING DRUM | 35r/min | |
NUMBER OF BLADES | 2*7 | |
MAX. AGGREGATE SIZE
| scree
| 80mm |
aggregate | 60mm | |
OUTLINE DIMENSION (mm)
| Transport dimensions
| 3030*2300*2680 |
Working dimensions | 4486*3030*5280 | |
WEIGHT | 4000KG | |
