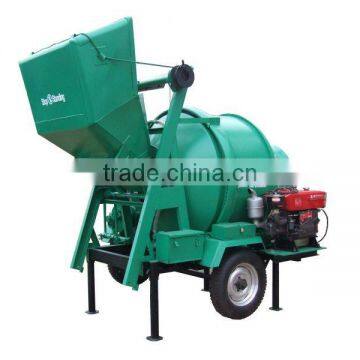

DIESEL MIXER

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	TIEMA	Model Number	JZC350
Motor Power	5.5KW	Mixing Power	5.5KW
Charging Capacity	560L	Reclaiming capacity	350L
Speed of Mixing Drum	14r/min	Water Supply Mode	water pump
Discharge Way	manua operation	Outline Dimension	281021403070

Product Description

Specifications

Diesel engine, 350L
Apply to the remote areas and the wild which have no electric power supply.

This machine is aimed at a remote area construction with no electric power , unable to realize mechanization specially designed, it is basis with a set of diesel generating system in the principle of existing JZC350 mixer, the diesel engine provides power for the machines to ensure mixer work. Because this power generation system of output for 15KW .During the guarantee mixer normal work at the same time, It still can provide part of the electric power used to drive foreign other small devices, such as the vibrating. For work and lighting using.
In addition ,the machine can need not generating device, direct access to external power using in more exotic matching power supplying, , accomplish the wood electricity amphibious.

Using and features :

the machine is used for mixing plasticity and illiquid concrete, every time can stir 0.35 m3 concrete (refers to the volume of real after pounding), productivity is 12 ~ 14m3 / h, applicable to small and medium-sized construction engineering, roads, Bridges, water conservancy project and concrete enterprise.

Technical data:

Technical data		JZC350concrete mixer with diesel engine
Performance	Discharging capacity L	350
	Charging capacity L	560
	Productivity m³/h	10-14
	Speed of the mixing Drum r/min	14
	Max.aggregate size. mm	60-80
	Mixing motor kw	5.5
	Water-pump motor kw	0.55
Diesel engine	Nominal power kw	14.7
Diesel engine	Nominal speed r/min	2200
Max.chug speed km/h		20
tyre		6.50-16
Total weight Kg		1970
Outline(lwh)mm		281021403070
