Home > Products > Manual chain block > 5 Ton Chain Pulley Block/manual Chain Hoist
5 Ton Chain Pulley Block/manual Chain Hoist
- Qingdao\Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | JNDO | Model Number | HSZ | |
| Usage | Construction Hoist | Power Source | Hand Chain | |
| Sling Type | Other, Chain, Chain | Maximum Lifting Weight | 20T | |
| Maximum Lifting Height | 3M | Lift Speed | manual | |
| Certification | CE&GS&ISO9001 | Warranty | 1 YEAR | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
5 ton chain pulley block/manual chain hoist1.CE&ISO&GS
2.Automatic double-pawl braking system
5 ton chain pulley block/manual chain hoist
HSZ chain hoist is a kind of widely used and portable manual operating hoisting machine, it can be used in machine installation, products lifting, loading and unloading in industry, agriculture, construction and mineral production. It is suitable to be used in the open air and no electric power works.
*Features of chain pulley block :
- Gear: they innovated symmetrical arrayed high speed synchronous gear and made from international standard steel. more strong and steadier.
- Chain: adopt high strong chain and high precision welding technology, meet ISO international standard. Fit for heavy and overload working conditions, take your hands a better feeling
- Hook: made of high-class alloy steel, it has high strength and high security, by using new design, weight will never escape disconnect.
- Plastic Plating: adopt advanced plastic plating technology inside and outside, it looks like a new one after years of operation.
- Housing: made of high-classed steel, more firmly and dexterous.
*Parameters of chain pulley block :

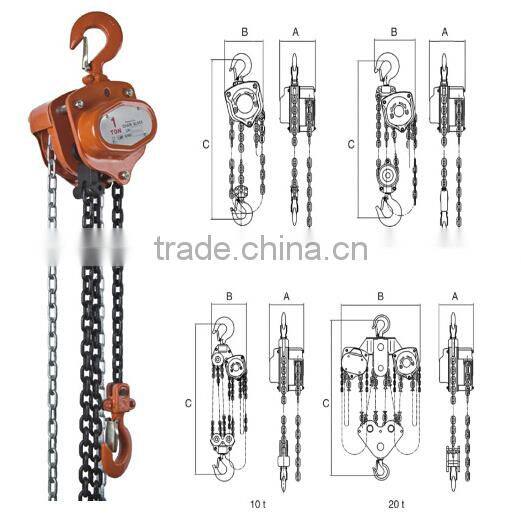

Physical diagram shows
Related Products
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
5. What’s the information should I provide when inquiry?
a. What's the lifting material?
b. How much is the maximum lifting weight of the hoist?
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment?
Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist. We have a long history of customer confidence and supporting chinese manufacturers. We provide our customers with high-quality made-in-China hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist from hundreds of Chinese manufacturers.
We have a long history of customer confidence and supporting chinese manufacturers. We provide our customers with high-quality made-in-China hoist, electric hoist, electric chain hoist, crane and electric wire rope hoist from hundreds of Chinese manufacturers.
Welcome to JNDO
Your success is our business
Super Abilites:
By adopting carefully selected components and perfect and perfect manufacturing technology,we can show the outstanding product quality to customers so that users can operate our products easier,by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.
Outstand Service:
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
