New Design Light Duty Lever Chain Block Ratchet Come Along 250kg 5 FT Lift Chain Hoist
- QINGDAO
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | JNDO | Model Number | HSH-D 250kg lever block | |
| Usage | Construction Hoist | Power Source | Lever | |
| Sling Type | Chain | Maximum Lifting Weight | 750KG | |
| Maximum Lifting Height | 12m | Lift Speed | manual | |
| Certification | CE,GS | Warranty | 12 months | |
| After-sales Service Provided | No overseas service provided |
Product Description
New Design Light Duty Lever Chain Block Ratchet Come Along 250kg 5 FT Lift Chain Hoist

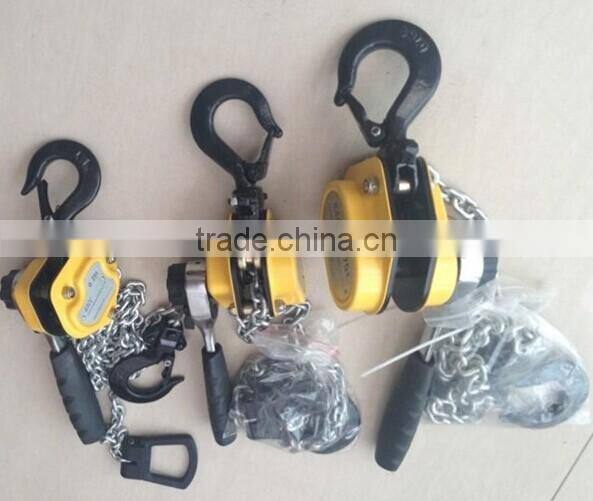

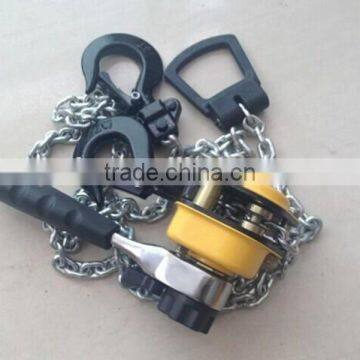

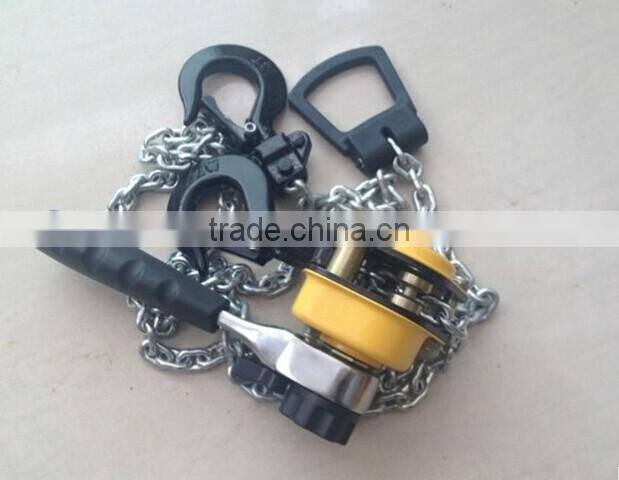

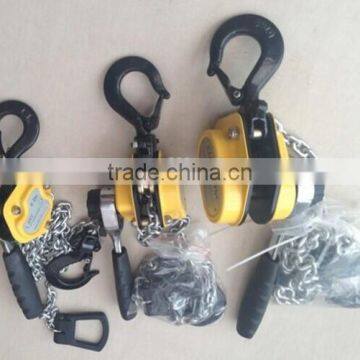

HSH-D Type Mini lever hoist
1.Rated Capacity: 250kg -750kg
2.This Lever Block is the smaller and lighter in Dali Brand
3.This Series Lever Block is an essential hand tool , widely use in industry , business and servise
4.This lever block is with very light weight , design compact , could use in limit room .
Features of HSH-D Type Mini lever hoist
1. The suspension and load hook is made by anti-aging and high strength alloy steel ,when overloading procedure will happen ,it will deformate and won't suddenly broken
2. Hook is with the strong security lock, can rotate 360 degree
3.The design of controller is according with human ergonomic , more easier to operate
4. Enclosed design can protect the internal components from pollution
5.All the parts of circle type Brake Load are made by high quality raw material and anti-corrosive
HSH-D Type Mini Lever hoist parameter:
| Model | HSH-D250 | HSH-D500 | HSH-D750 | |
| Rated Capacity | (Kg) | 250 | 500 | 750 |
| Standard Lifting Heigh | (m) | 1.5 | 1.5 | 1.5 |
| Lever Force of full load | (N) | 260 | 260 | 220 |
| Test Load | (Kg) | 375 | 750 | 1125 |
| Chain Specification | (mm) | 4*12 | 4*12 | 5*15 |
| Net Weight | (Kg) | 2.2 | 3.2 | 4.7 |
| Gross Weight | (Kg) | 2.4 | 3.4 | 5 |
| Packing Size | (cm) | 21*12.5*11.5 | 23.5*13.5*12 | 30*14*14.5 |
| The weight per add one meter | (Kg/m) | 0.346 | 0.346 | *0.541 |
Dimensions | a | 86 | 95 | 121 |
| b | 155 | 178 | 204 | |
| c | 170 | 170 | 240 | |
| d | 30 | 35 | 30 | |
| e | 79 | 87 | 112 | |
| Hmin. | 245 | 285 | 335 | |
| g | 97 | 117 | 124 | |
| h | 77 | 80 | 84 |
Environmental conditios:
1. Usage Temperature Scope: Lower than 40 degree to higher than 60 degree
2.Use environemtn scope: use below 100% RH , don't use in the water
3.Use material scope: No use sparkproof material or asbestos
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
