tofu production line

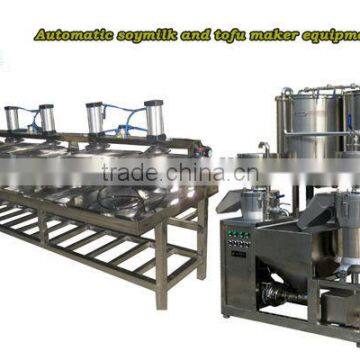

 TG-150& Y-3D3 SOYMILK AND TOFU MAKING MACHINE

Specification

Y-3D3  contious tofu press machine

Description:
Consist of full stainless steel , rack, tofu mould ,pressure control system and air Compressor .Simple structure, easy to operate, wash convenient , the tofu press height can easy control,  the tofu looks nice , production operations save time and strength.

Apply to Beancurd Mill,Large-scale chains shop, canteens, restaurants etc.

Technique datas:
diameter of air cylinder :80mm, route:150mm
Maximun pressure:0.8MPa
tofu mould:460*460*60mm
machine size:3500*980*1300mm

 Y-3D3  can press Six mould  once only.
Divided into three groups switch control

 Features:

1, The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select

the appropriate model to use their own)

2, The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking

soymilk, composed of two grinding & separating machines, suction pumps, beandreg pumps, soybean

milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam Steam generator  .

3, Make tofu ,You just need added a coagulating barrel is OK. This press machine can make tofu about 240-300kg per hour.If you want to make more, just need added this press machine is OK.
