- POWERWAY Energy Tech ., Co. Ltd.
-
Wuxi, Jiangsu, China
- Main products: split core Current transformers, rogowski coils, Hall sensor, current transformers

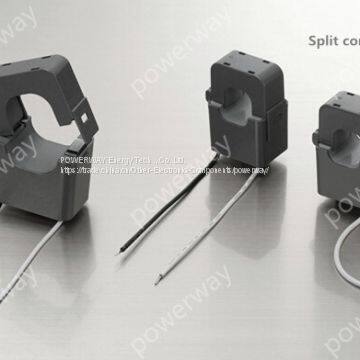

Split core CT
- Shanghai
- T/T PayPal Other
- 5 days
You May Like
Product Details
| Brand Name | POWERWAY | Place of Origin | China | |
| Model Number | T24 |
Product Description
Application:
● Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air - condition equipment and automation ЁC control system.Current , power and energy monitoring device.
● Relay protection device.
Specification:
●Rated Voltage/Output ： 0.66KV / 333mV & 0-500mA
●Insulation Voltage： 2KV
●Rated Frequency： 50HZ / 60HZ
●Operating Temperature： -15℃to 60℃
●Flame resistance： UL94-V0
●Certificates： CE、 UL
................................................................................................................................................................................
Model
| Model | I.D. | Ratio | output(mA/V) | Rated amps | Accuracy |
PCT-T06 | 6mm | 1000:1 | 0-10mA/0.333V | 1, 5,10, 15, 20, | 0.5 , 1.0 |
PCT-T10 | 10mm | 3000:1 | 0-50mA/0.333V | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
PCT-T16 | 16mm | 3000:1 | 0-100mA/0.333V | 50, 70, 100, 120 | 0.5 , 1.0 |
PCT-T24 | 24mm | 3000:1 | 0-200mA/0.333V | 100, 150, 200, 300 | 0.5 , 1.0 |
PCT-T36 | 36mm | 3000:1 | 0-500mA/0.333V | 300, 400, 500, 600 | 0.5 , 1.0 |
