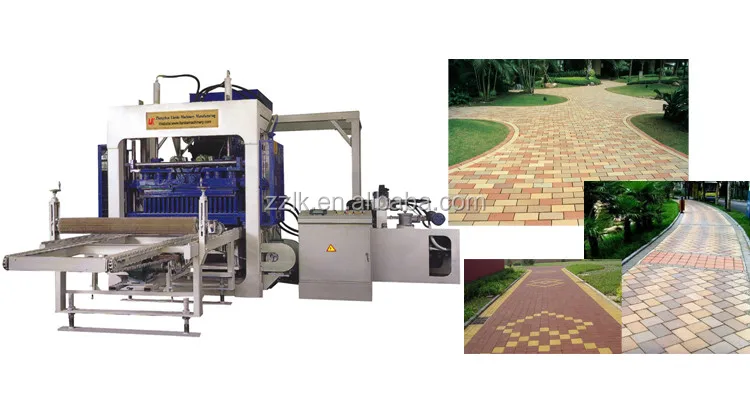

5-15 Concrete Hollow Brick Machine Price/hollow Block Machine/concrete Blocks Making Machine

LK5-15 Hydraulic automatic concrete brick making machine's ancillary equipments

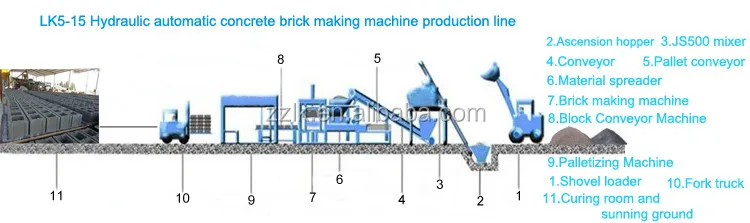

As shown , this is a complete production line. It mainly includes 11 links , the brick maing machine use German technology.

Video link:

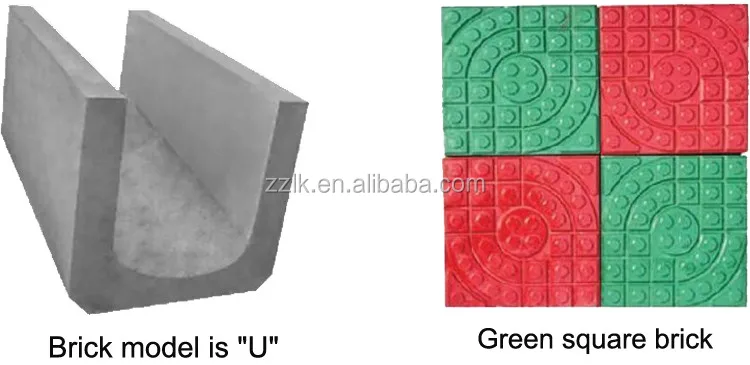

Testing LK5-15 brick making machine, brick model is "U".

https://youtu.be/b09WOJXy6co

Testing LK5-15 brick making machine, double layout material, Green square brick.

https://youtu.be/b5uqZhNk8Kw

LK5-15 concrete brick/block making/moulding machine

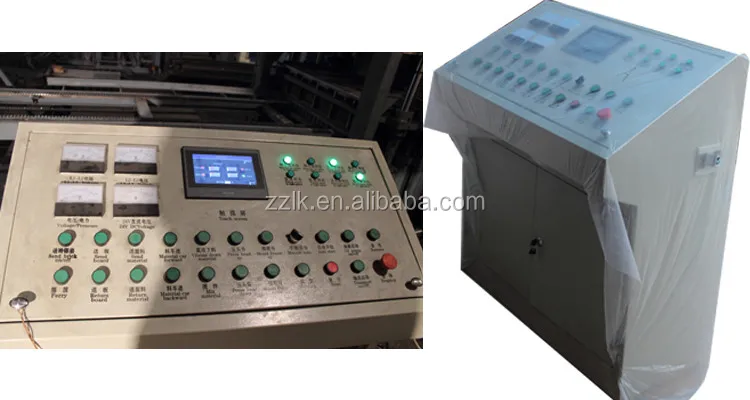

1.PLC

1）PLC is the control center of production line , it control mixer , conveyor , host and palletizing machine .

2）PLC is Japan's mitsubishi technology , The screen can touch，It can set up automatic operation and manual operation.

3）In generally , If PLC fails , we can use manual operation.

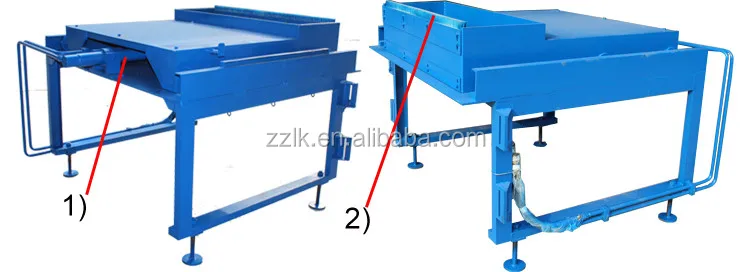

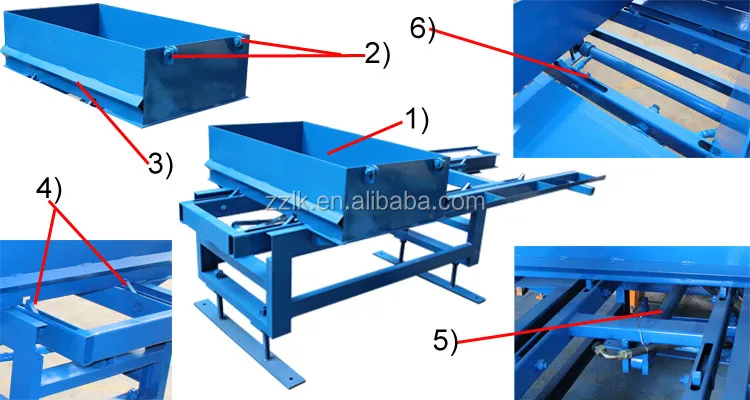

2.Pallets Feeder

     Pallets feeder can realize to convey one after another of the plate to the molding machine automatically.

     Because PLC can pallets feeder by hydraulic equipment.

1)Pallet box. Storage pallet.

2)Pulley. When workers placed the pallets into the pallet box , workers can save energy.

3)Angle iron. On both sides have the angle iron , they have strengthen and fixed role in pallet box.

    It effectively prevent the deformation.

4)Pusher. Push pallet into the machine.

5)Hydraulic cylinder. The conditions of the automation.

6)Pallets feeder interior structure.

3.Screw Type Concrete Spreader

     It adopts hydraulic screw principle , a greater degree of improve the effect of arrangement of raw material.

1)Hydraulic cylinder. The conditions of the automation.

2)Hairbrush.Cleaning undersurface of pressure head, to ensure the quality of the finished product.

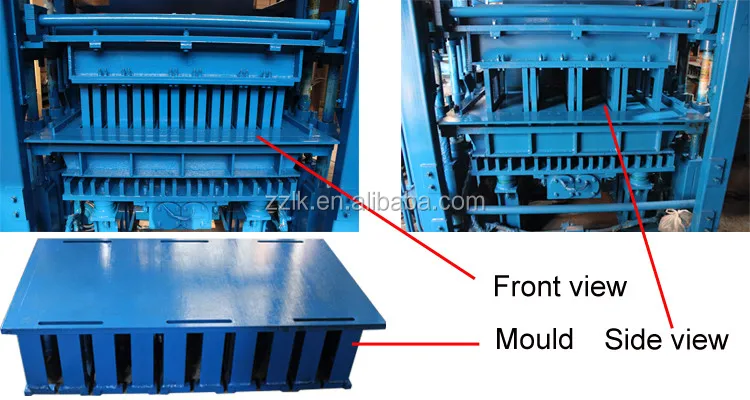

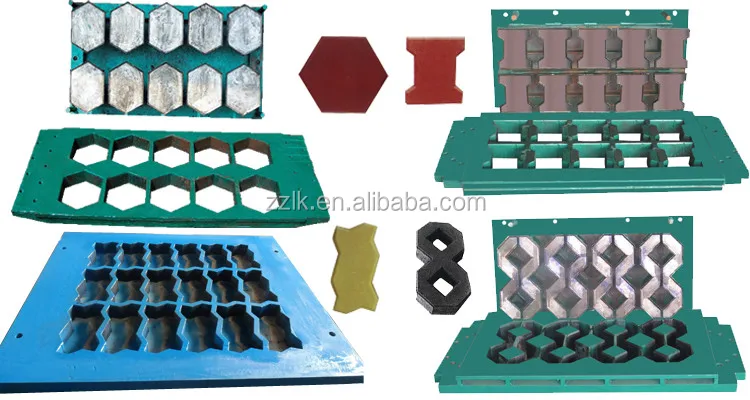

4.Pressure Head And Mould

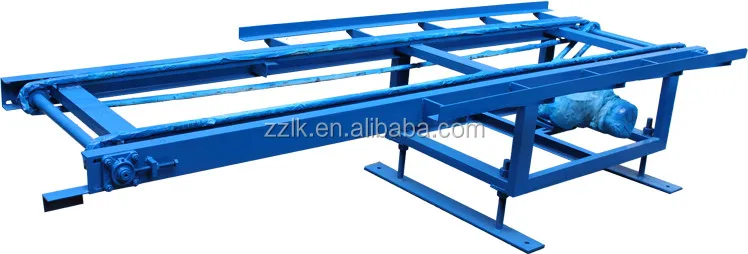

5.Block Conveyor Machine

     Finished product from brick machine to palletizers, machine to roperation automatically.

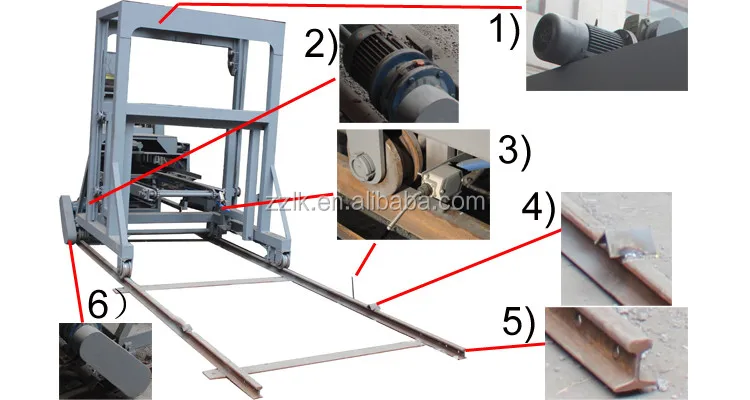

6.Palletizing Machine

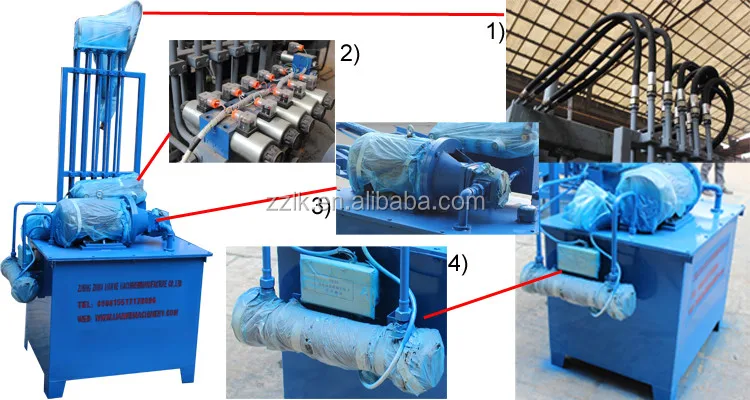

1.Hydraulic work, high degree of automation.

1)Hydraulic tubing. Use special synthetic rubber, has excellent oil resistant, heat resistant, aging resistant performance.
    Hydraulic tubing high bearing pressure, pulse superior performance.Tube body combined with close, use soft, small

    deformation under pressure.The hydraulic tubing has excellent resistance to curve around sex and fatigue resistance.

2)Solenoid valve.  High efficiency, good quality, long service life.

3)Pump.The core of the hydraulic pump station components, performance is good, good quality.

4)Equipotential connection terminal box and water cooling equipment.

2.High efficiency, multi-function.

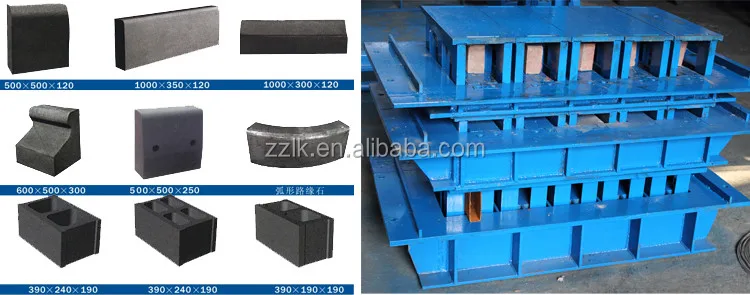

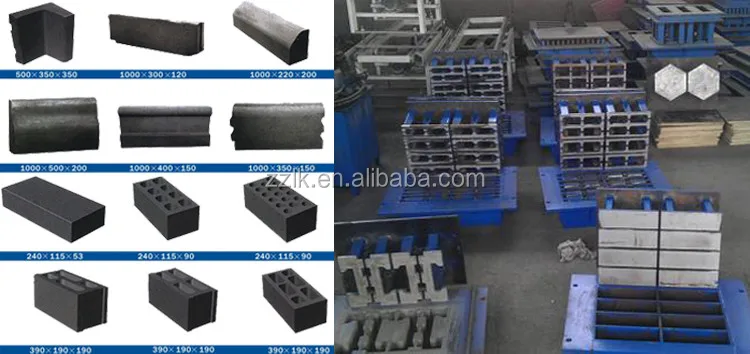

   The machine has a set of mould, if you need to customize other mould, you need to pay extra.

3.Focus on the details，valuable on the precision.

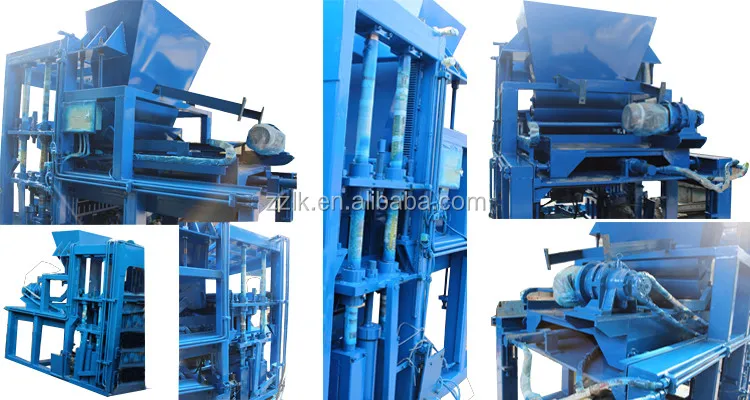

      Different orientation diagram.

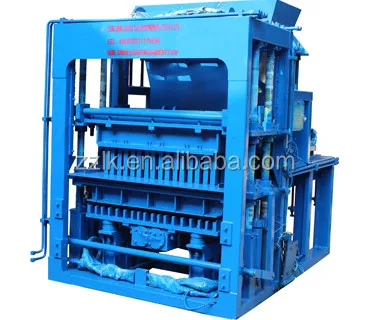

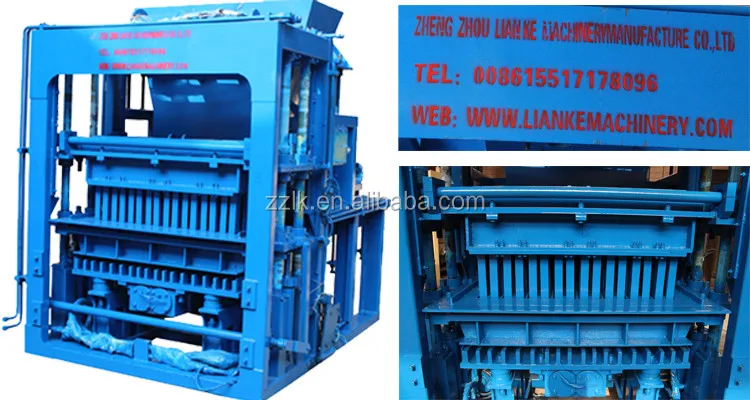

      Front view of machine.

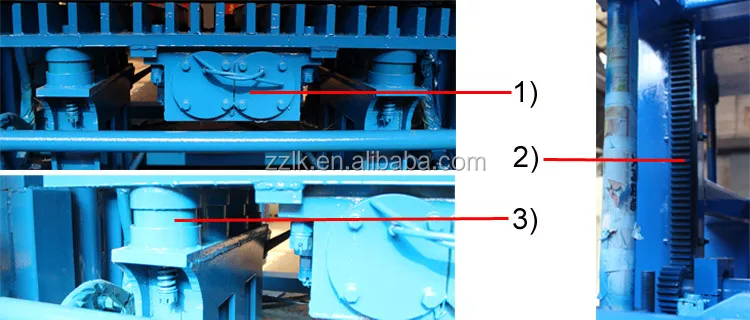

Vibration equipment and Synchronous rack.

1)Vibration box.

2)Shock absorption pad.

3)Synchronous rack.

Company :
Zhengzhou Lianke Machinery Manufacture Co., Ltd. is located in xiaobei industrial park,zhengzhou city, henan province,China.Covers an area of nearly 27000 square meters,construction area of 18000 square meters,its annual sales exceed 150 million yuan,to earn foreign exchange through exports of $6.8 million.From 1985 to 2016, Zhengzhou Lianke Machinery Manufacture Co., Ltd. passed more than 20 years, today, Zhengzhou Lianke Machinery Manufacture Co., Ltd. equipment has spread throughout the country, equipment is approved by the national people's, harvest many honors.And hot sale overseas,exported to North America, South America, Latin America, Africa, Europe, Australia.

QUALITY ASSURANCE: The guarantee of the whole machine is one year, not including man-made damage.

Our service: Engineers overseas installation services.

Packing Details : Export standard packing, LCL or FCL.
Delivery Details : 15-25 days after deposit is received.
After you pay a deposit in advance, we will prepare the goods for you at the fastest speed and we will update your order information at any time, we will use pictures, video and other ways to let you know your order execution situation.

We can give you only service attitude, product quality, good price and a happy cooperation.
