Home > Products > brick making machine > Factory Price Egg Laying Concrete Block Machine With High Quality,easy Operation Block Molding Machinery

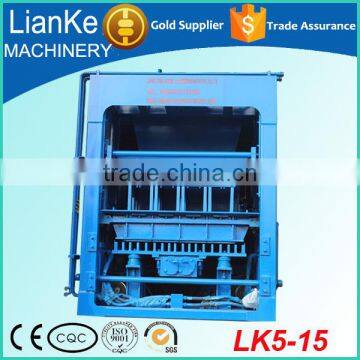

Factory Price Egg Laying Concrete Block Machine With High Quality,easy Operation Block Molding Machinery
- Qingdao
You May Like
-
LK5-15 Fully Automatic Fly Ash Brick Machine Complete Production Line With Low Prcie
-
Factory Direct Sale LK5-15 Interlocking Cement Block Making Machine With Big Production
-
LK5-15 Fully Automatic Big Type Egg Laying Block Machinery Price,cement Block Making Machine
-
Lianke LK5-15 Standard Bricks Molding Machine Made in China,cheap Multi-hole Brick Making Machine Price
-
Widely Used LK5-15 Brick Molding Machine Made in Zhengzhou,concrete Block Making Machine Price
-
Cheap LK5-15 Brick Making Machine With High Output,concrete Brick Making Machinery Price
Product Details
| Condition | New | Type | Other, paving/interlock/hollow block macking machine | |
| Brick Raw Material | Other, cement/sand/fly ash/water | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 81600 pieces/10 hours | Place of Origin | Henan, China | |
| Brand Name | Lianke | Model Number | LK5-15 | |
| Voltage | 380V | Power | 23KW | |
| Dimension(L*W*H) | 5800*3000*2800 | Certification | ISO9001/CE | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Seller commitment:
The price of the product is real and effective.
All pictures were taken by the factory.
The product supports:
Video link of LK5-15 full automatic block making machine:
It can produce different specifications color trails brick,square brick, lawn brick,hollow block,standard brick,porous brick etc.
Main advantage:
2)Eequipment investment is small, easy to operate.
Touch screen PLC Control cabinet
Easy to operate.Once PLC control cabinet computer terminal situation occurs,it can be operated and controlled by manual model.Then the machine can run normally.
Touch screen PLC can control the following four parts:
One :
Host machine
1) Motor fan:It can make the host machine motor lower the temperature.
2) Hydraulic pump station:Water-cooled cooling system.
3) Vibration box:Inside the eccentric shaft,two motor control two eccentric shaft,thereby generating large vibration platform vibration force,then exciting force is transmitted to the mold frame.
4) Synchronization rack:It ensures that presser head is not tilted to make producted brick surface more smooth.
Host machine includes the following four parts:
1) Pallets feeder
2) Distribution material
3) Moulds and presser head
4) Block conveyor
TWO :
Belt Conveyor machine(Belong to auxiliary equipment one)
Belt Conveyor machine
The mixed materials are conveyed to molding machine hopper for making blocks.
THREE :
Mixer machine(Belong to auxiliary equipment two)
Mixer machine
All the materials are put into the mixer tank and mix it at the same time.
FOUR :
Palletizer machine(Belong to auxiliary equipment three)
Stacker machine
The stacker will stack the pallets with concrete blocks.
1) Stacker machine track
2) angle iron:To prevent deformation of the crate.
3) Position sensor:it is used to control the stacker machine deformation during walking.
Major product model(Brick&Block),Road-rim Bricks,Paver brick,color brick,planting brick,protecting-slope brick
Brick some photos from our machine produces
(1)The block making machine all parts quality assurance period for 12 months.In normal use circumstances,there is any quality problem in the warranty period ,we use DHL,UPS,or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We can try our best effort to solve,whenever customers have a problem.
(3)We will send clearance document(bill of lading,packing List,insurance list and contract)to customer by DHL,and the service is free.
We will send the products on time according to the requirements of customers.
Below is our block molding machinery package and delivery picture.
About packing:
Using wooden box to package LK5-15 block making machine.And the package is free.In addition, we will cover a layer of plastic film on the side of the body when we delivery product, which can be used to protect the block making machine paint.
About delivery:
①under normal circumstances,7-15 working days delivery.
②If you use trade assurance,it need extend 10 working days delivery.
