Concrete Roof Tile Manufacturing Machines, Hydraulic Roof Tile Moulding Machine, Roof Tiles Concrete Tile Press

The full-automatic concrete Concrete roof tile manufacturing machines is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment.

1) Main Technical Information

We have two models of the full -automatic hydraulic Concrete roof tile manufacturing machines: MYW-8 and MYW-10.
MYW-8 tile machine can produce normal size tiles: 420*330*15mm, 424*337*15mm.
MYW-10 tile machine can produce large size tiles: 940*640*15mm, 1230*640*20mm.

Main technical parameters of the MYW-8 & MYW-10 full-automatic concrete Concrete roof tile manufacturing machines are as follows:

2) Main Components

The full-automatic concrete roof tile moulding machine includes the following parts:

A) Machine Video Links on YouTube

The running of the Full -automatic Roof Tile Making Machine Production Line.
1. (MYW-8 video link in customer's working site) video link--1--  https://youtu.be/oFymeoUKfjk

video link--2-- https://youtu.be/MZLrxVhcWyc
2. (MYW-10) https://youtu.be/F8iPh2kmEIM

B) Raw Material

Mix water, raw material such as cement, coal ash or stone powder and sand up in proportion and feed the mixture evenly to the main machine of the CNC concrete roof tile making machine, and then under the high pressure of a hydraulic cylinder and a tile mould, semifinished concrete roof tiles that become concrete roof tiles after maintenance and painting are produced. If different moulds such as terrazzo moulds are applied, terrazzo can be obtained.

C) Working Flow

The working flow of the cement roof tile making machine is as follows:

D) Photos

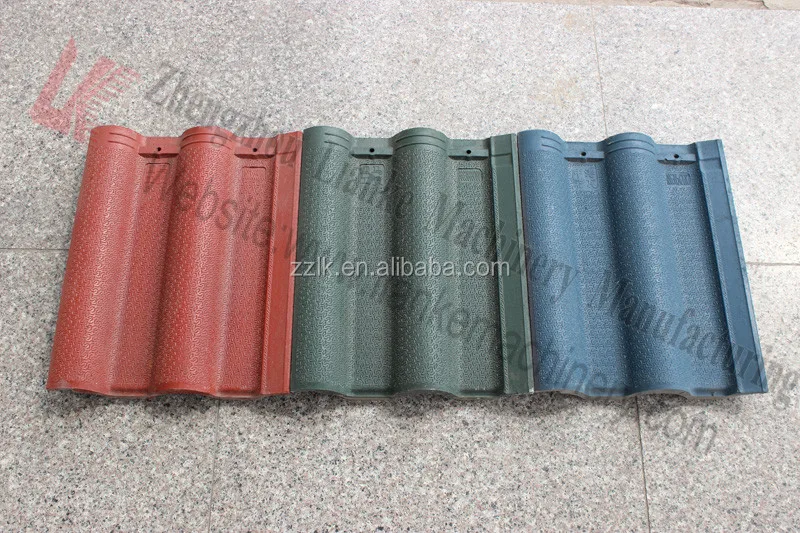

Roof tiles placed on the terrazzo floor.

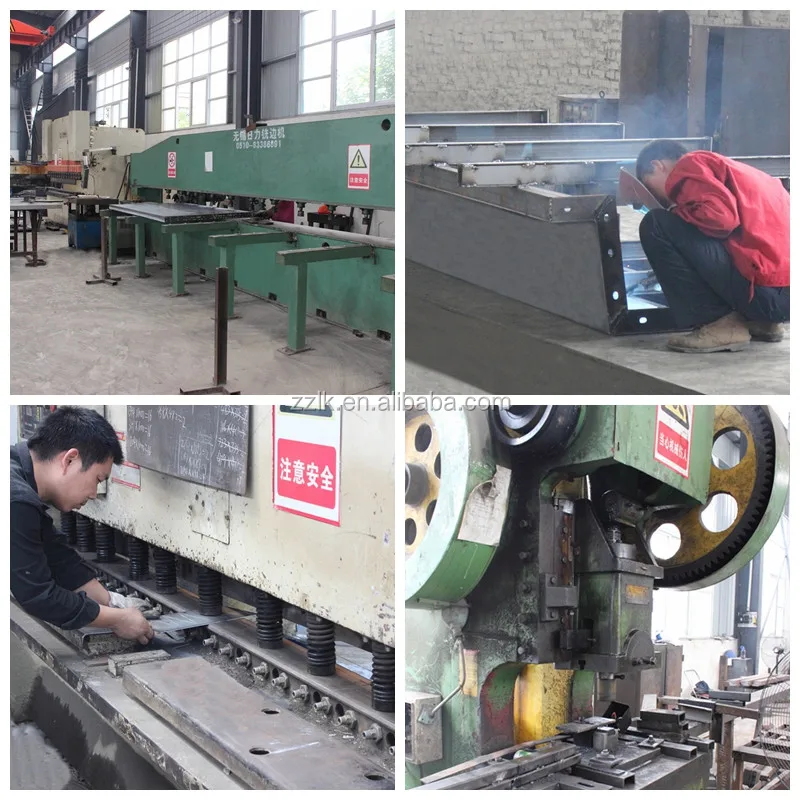

Workes and engineers at Lianke Machinery always pay much attention on details when manufacturing the concrete tile making machines while the details usually decide the smooth running:

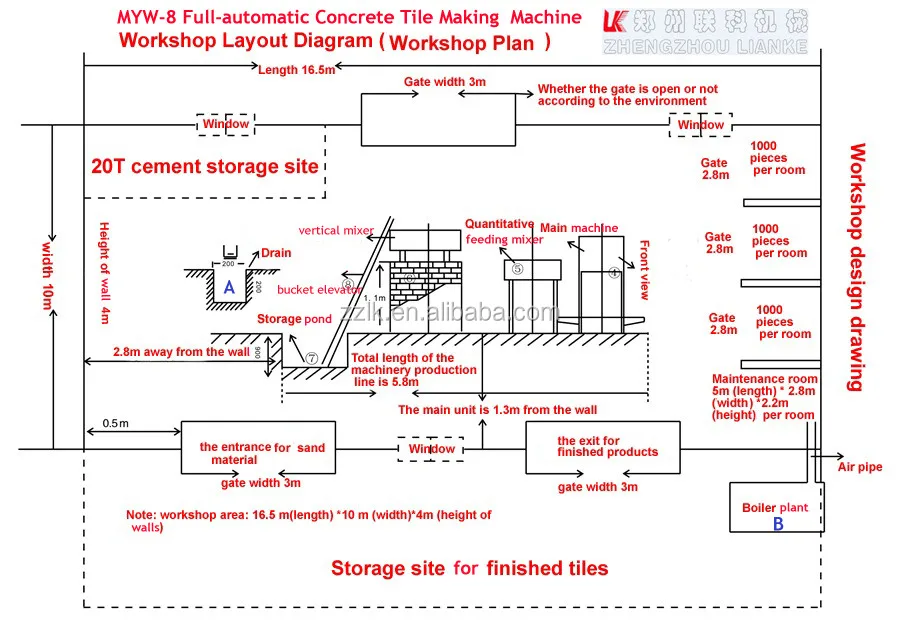

Note:
A. Drain: In actual scene, a drain along side the main machine is required.
This is a sectional drawing of the production line, so the drain is drawn on one side for your easy understanding.
B. Boiler plant: The boiler plant is optional in this production line and is not included in our quotation for this production line.

B) Quality Guarantee
High Quality is our Promise; Being Trustful is our Responsibility.
1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long maintenance for the machine.

Founded in 1985, Zhengzhou Lianke Machinery Manufacture Co.,Ltd is a Chinese specialized manufacturing enterprise incorporating the research, development, production and sale of mainly building material making
machinery, and mining machinery such as cement roof tile machine, terrazzo making machine, spacer block machine, paving block machine, brick machine, briquette coal machine, ball press machine, mining processing equipment, crusher, dryer, rod machine, granulator, carbonization stove, wood charcoal briquette machine,etc.
