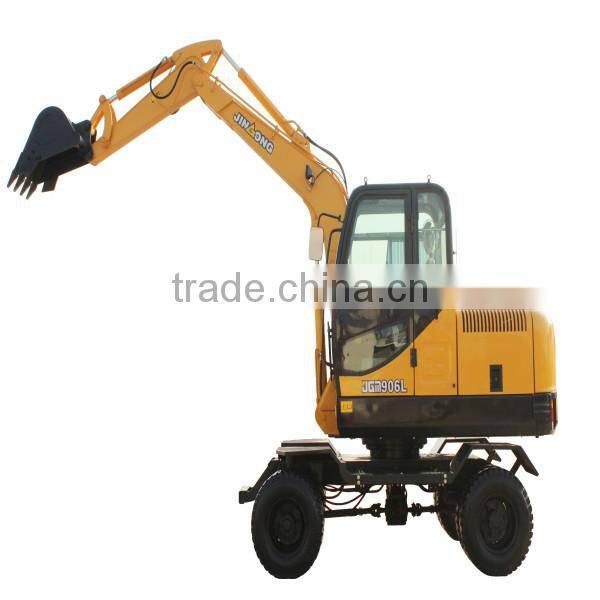

Customized Loader Tires 23.5-25 23.5r25 23.5x25 JGM906 Underground Loader Wheeled Excavators

FOB Price

US$ 37,500 - 38,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Jingong
Model Number	JGM906	Condition	New
Moving Type	Crawler Excavator	Operating Weight	6000kg
Bucket capacity	0.2m3	Maximum Digging Height	3690mm
Maximum Digging Depth	3770mm	Machine Weight	6100kg
Max Digging Radius	2815mm	Rated Speed	5.5km/h
Certification	CE ISO	After-sales Service Provided	No overseas service provided

Specification:

Diesel engine
Model	Yanmar 4TNV94L-SFN
Type	4 cylinders,4 strokes, direct injection, water-cooling
Displacement	3.05cc
Rated power	39.5kw at 2200rpm
Max. Torque	214nm at 220rpm
Swing speed	9.8r/min

Dimensions
Overall length(during transport)	6200mm
Width of turntable	2000mm

Height of driver’s cabin top	2610mm
Height of boom top	2000mm
Track width	2000mm
Wheel base	2000mm
Track length	2560mm
Track gauge	1600mm
Track shoe width (standard)	400mm

Operating specification
Operation weight	6100kg
Standard bucket capacity	0.2m³
Max. excavating height	5300mm
Max. dumping height	3690mm
Max. excavating depth	3770mm
Max. excavating radius	6425mm
Excavating radius at excavator standing plane	6275mm
Min. swing radius	2815mm
Excavating height at min. swing radius	3205mm
Max. excavating force of bucket	42.5kn
Max. excavating force of bucket rod	28.5kn
Oil and cooling
Fuel	125L
Coolant	32L
Engine oil	10.5L
Travel reducer oil	2x1.5L
Swing reducer oil	6L
Hydraulic oil	125L
