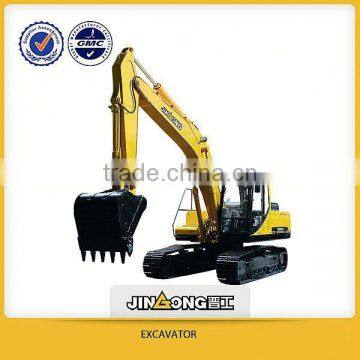

sprocket excavator 15T 0.6m3 bucket capacity JINGONG Excavator(JGM915)

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

JGM 915-LC Hydraulic Crawler komatsu pc75uu-2 excavator

Specification:

Diesel engine
Model	Cummins 4BTAA3.9
Type	4 cylinders,4 strokes, direct injection, water-cooling
Displacement	3.9L
Rated power	86kw at 2200rpm
Max. Torque	447nm at 220rpm

Dimensions
Overall length(during transport)	7806mm
Width of turntable	2490mm
Height of driver's cabin top	2735mm
Height of boom top	2450mm
Wheel base	2917mm
Track length	3655mm
Track gauge	1990mm
Track shoe width (standard)	500mm

Operating specification
Operation weight	13700kg
Standard bucket capacity	0.6m³
Max. excavating height	8400mm
Max. dumping height	5590mm
Max. excavating depth	5765mm
Max. excavating radius	8455mm
Min. swing radius	2820mm
Excavating height at min. swing radius	3970mm
Max. excavating force of bucket	79.4kN
Max. excavating force of bucket rod	66.3kN
Hydraulic system
Main pump	KAWASAKI twin axial plunger pump+ gear pump
Max. flow rate	2X132.7L/min
Max. working pressure(boom, arm, bucket)	34.3Mpa
Travel	34.3Mpa
Swing	27Mpa
pilot	4.0Mpa
Travel system
Travel motor	NABTESCO switchable between two speeds
brake	Hydraulic, normally engaged
Travel speed	5.6/3.3 km/h
Tractive force	103kN
Grade ability	35^o
Ground clearance	430mm
Track tensioning	Grease tensioning
Track roller	2x2
Carrier roller	2x7
Track shoe width	500mm
Oil and cooling
Fuel	246L
Coolant	32L
Engine oil	11L
Travel reducer oil	2x3.0L
Swing reducer oil	3L
Hydraulic oil	136L
Air conditioner	0.9kg(cold media)
